Clause 5.3.2, 5.4.10, V.1.4 Figure V.3 Blunt Probe Telecom Test Probe IEC 62368-1

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2210-23
Trading Properties
Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 60 Sets Per Month
Tags

IEC 62368-1 Jointed Test Probe

IEC 62368-1 Blunt Probe

IEC 62368-1 Water Spray Test Apparatus
Specifications
Standard: IEC 62368-1 Clause: 5.3.2, 5.4.10, V.1.4 And Figure V.3
Baffle diameter of the handle: 50±0.2 Mm Probe diameter: Φ12+0.05 0 Mm
End radius: R6+0.05 0 Mm Probe length: 80±0.2 Mm
High Light:

Clause 5.3.2 Blunt Probe

,

IEC 62368-1 Blunt Probe

,

Figure V.3 Telecom Test Probe
Product Description

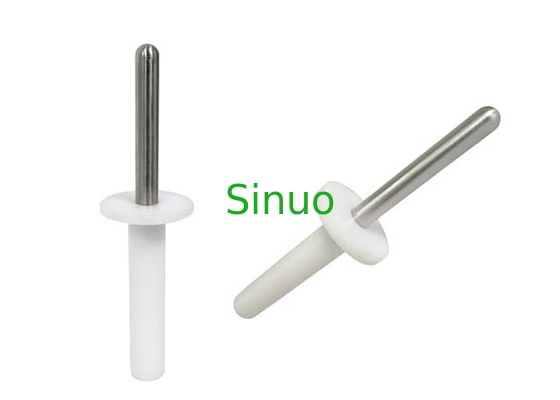

IEC 62368-1 Clause 5.3.2, 5.4.10, V.1.4 and Figure V.3 Blunt Probe



Product Information:

Standard:The test probe is designed and manufactured according to the standard requirements of IEC 62368-1:2018 clause 5.3.2, 5.4.10, V.1.4 and figure V.3, IEC60950 figure 2C, IEC60065 figure B1, IEC62151 figure 3, UL6500 figure B.1, and etc.
Application:It is used for the bare parts of TNV circuits of information technology equipment to see whether they have sufficient protection.
Test sample:Information technology equipment.
Feature:Nylon handle + stainless steel probe.



Technical Parameters:

Standard IEC 62368-1
Clause 5.3.2, 5.4.10, V.1.4 and figure V.3
Probe length 80±0.2 mm
End radius R6+0.05 0 mm
Probe diameter Φ12+0.05 0 mm
Baffle diameter of the handle 50±0.2 mm


Clause 5.3.2, 5.4.10, V.1.4 Figure V.3 Blunt Probe Telecom Test Probe IEC 62368-1



Clause 5.3.2, 5.4.10, V.1.4 Figure V.3 Blunt Probe Telecom Test Probe IEC 62368-1
