Iec 62133 400w Multi - Mode Lead Acid And Lithium Battery Test Equipment

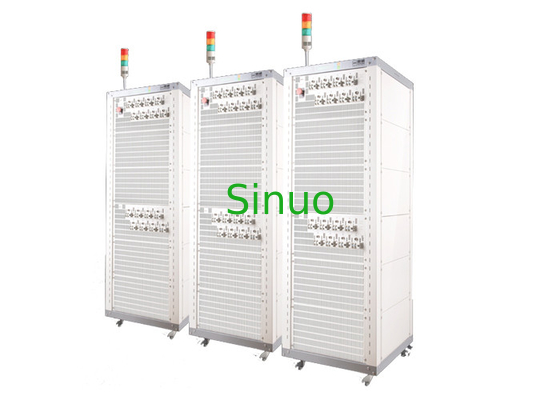

Iec 62133 400w Multi - Mode Lead Acid And Lithium Battery Test Equipment

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 1 Month
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 10 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN552
Voltage Range:
100mV~20V
Min. Discharge Voltage:
0 V
Current Range:
1A~200A
Power:
4000W
Loop Measure Range:
~65535 Times
Max Steps Per Loop:
254
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
1 Month
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
10 Sets Per Month
High Light:

400w Lithium Battery Test Equipment

,

Iec 62133 Battery Test Equipment

Product Description

IEC 62133 Discharge Capacity Battery Testing Equipment For 20V 200A Car





Standards:

Articles 6.3 and 6.4 of GB31241-2014 "Safety Requirements for Lithium Ion Batteries and Battery Packs for Portable Electronic Products",
IEC 62133-2012 "Secondary cells and batteries containing alkaline or other non- acidelectrolytes-Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications" Article 7.3.8 and 7.3.9
GB/T31485, EN, UN38.3, UL 2054, QC/T 744-2006, QC/T 743-2006



Overview:

1. Scope of application: This charging and discharging system is suitable for comprehensive testing of lithium polymer, lithium ion, nickel metal hydride, nickel performance, lead-acid and other batteries; battery research; small battery production and capacity sorting; combination batteries, notebook computers/ Battery battery, smart phone battery, power bank, new energy electric vehicle 18650 lithium battery and other product tests.
2. The system hardware is stable and reliable, and each channel has an independent constant current and hardware constant voltage source.
3. The process step setting scheme can be set independently for continuous disconnection; the process step "continue" function after "stop" (including) in any situation is added.
4. Fast data collection, accurate collection of voltage and current changes, and powerful log function. The only data and curve processing, report function. Data and data can be exported to excellent, text data and overall total editing processing.
5. Different types of watches can be matched with different specifications of battery cell button batteries and combined test batteries.
6. It can be used offline, temperature and internal resistance can be measured, and the smbus function of laptop battery.
7. The supplied voltage becomes softer, the box number can be changed, and the range can be changed.
8. Optional serial port, network and usb connection. It adopts c/s mode and can be controlled remotely.



The number of channels, voltage range, current range and etc. can be customized according client's specific requirements. Please email or call to Sinuo for further assistance.



Technical Parameters:



Project Index

Parameter Index

Input Power AC380V±10%/ 50 or 60Hz
resolution AD:16bit;DA:16bit
Input Resistance ≥1MΩ
Input Power 11139W
Channel Control Feature Constant current source and constant voltage source adopt independent double closed loop structure
Channel Control Mode Independent control
Voltage Voltage Range Per Channel 100mV~20V
Minimum discharge voltage 0V
Accuracy ± 0.1% of FS
Constant voltage cutoff current 0.4A
Stability ± 0.1% of FS
Current Current Range Per Channel 1A~200A
Accuracy ± 0.1% of FS
Stability ± 0.1% of FS
Power Per Channel Output Power 4000W
Stability ± 0.2% of FS
Time Current Response Time The hardware switching time of current to 20A is 20ms
Step Time Range

≤(365*24 )hour/step,

Time Form Support 00:00:00:000(h, min, s, ms)

Data Recording Record Condition Time△t: 100ms
Voltage△U: 40mV
Current△I: 400mA
Record Frequency 10Hz
Charge Charge Mode Constant current charging, constant voltage charging, constant current and constant voltage charging, constant current and constant voltage of the battery pack, constant power charging
Cutoff Condition Voltage, current, relative time, capacity, -ΔV
Discharge Discharge Mode Constant current discharge, constant power discharge, constant resistance discharge
Cutoff Condition Voltage, Current, Relative Time, Capacity, -ΔV
Pulse Mode Charge mode Constant current mode, Constant power mode
Discharge mode Constant current mode constant power mode
Cutoff conditions Time, line number
Min. pulse width 500ms
Number of pulse Single pulse step supports 32 different pulses
Continuous switching of charge and discharge A pulsed step can achieve continuous switching from charge to discharge
Cutoff condition Voltage, relative time
DCIR Test Supports custom point retrieval for DCR calculations (DC internal resistance)
Cycle Loop Measure Range 1~65535 times
Max Steps Per Loop 254
Nested Loop Nested loop Function, Max Support 3 Layers
Protection Software Protection
  • Power-down Data Protection
  • Off-line Testing Function
  • Setting Protection Condition, Setting Parameter: Low Voltage limit, Upper Voltage limit, Low Current limit, Upper Current limit, Delay Time, Single cell difference
  Hardware Protection
  • Add anti-reverse protection module, IP class IP2.0
Voltage and current detection sampling Four-wire connection
Noise <85dB
Noise <85dB
Database MySQL Database
A Means of Communication of Upper Machine TCP/IP Protocol
Data Output EXCEL2003/2010, TXT
Communication Interface Ethernet Port
Per Unit Main Channels No. 2
Dimensions 36U chamber, W*D*H:600*600*1780(mm)
