| Measurement Accuracy: | ±0.3% Rdg+ 1℃ | Measuring Range: | -50 ～1000 ℃ |
|---|---|---|---|
| Channels: | Can Be Customized | Temperature Resolution: | 0.1℃ |
| Applied Standard: | IEC 60335-1: 2016 | Structure: | Desktop Type |
| High Light: | IEC 60335-1 Oven Temperature Testing Equipment,Sinuo Microwave Oven Temperature Testing Equipment |
||

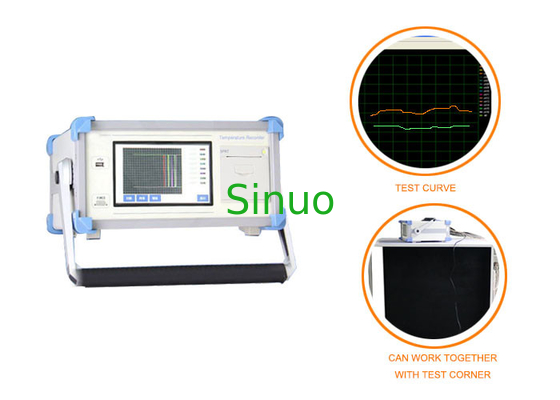

IEC60335-1 -50° Electrical Appliances Temperature Measuring Instrument
Standards and Clauses
GB4706.1-2005
IEC60335-1:2016
Appliances and their surroundings shall not attain excessive temperatures in normal use.
Samples and Restrictions
Household and similar electrical appliances such as microwave oven, refrigerator and etc.
Application
Household and similar electrical appliances such as microwave oven, refrigerator and etc.
Test Principle
Monitoring the real-time temperature by composing a temperature measuring circuit through electronic
Structure
Desktop type
Equipment dimensions: approx.: 320 × 300 × 150 (mm) W × H × D,
Equipment weight: 5kg
Use Environment
Power supply:AC220V±10%/50-60Hz or match client's local power supply,
Working temperature 0-40 ° C, humidity 30%-90%
Technical Parameters
| Channels | 8 channels, 16 channels, 32 channels, optional or can be customized |
| Electrical Control Method | 7-inch humanized touch interface operation, the temperature data and temperature rise curve can be displayed on the interface |
| Measurement Accuracy |
±0.3% rdg+ 1℃ Resolution: 0.1℃ Measuring range:-50 ～1000 ℃ |
| Test Software Content |
Collect and store temperature data and draw temperature curve
|
| Standard Configuration | With RS232 serial port for serial communication with computer |
| Temperature Measurement Point Arrangement | Configure the micro printer to print multiple temperature data at regular intervals. The print measurement interval can be set by the user. |
| Plywood | Configured according to the number of stations, 2 meters / strip of American imported K-type thermocouples. (Temperature range -50 to 260 ° C, wire diameter 0.522 mm) |
| Structure | With USB storage function, there is a 8GU disk, test data can be stored in real time and exported through software |
| Optional | With temperature probe, it can be operated with power (within 250V) without damaging the instrument itself. |
