IEC 61000-4-18 EMC Test 0.5μS±30% Ringing Wave Generator Test

IEC 61000-4-18 EMC Test 0.5μS±30% Ringing Wave Generator Test

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 10 set per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN6616
Open Circuit Output Voltage (PK1):
(250V~4000V) ± 10%
Adjacent Pulse Interval:
1s~99s
Output Impedance:
12Ω, 30Ω
Phase Injection Method:
Asynchronous Or Synchronous
Number Of Pulses:
1~9999 Times
Open Circuit Voltage Waveform Front (T1):
PK1:0.5μs±30%
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
10 set per month
High Light:

EMC Test Ringing Wave Generator

,

IEC 61000-4-18 Ringing Wave Generator

Product Description



IEC 61000-4-18 EMC Test 0.5μS±30% Ringing Wave Generator Test





Products Review:



The generator is used to simulate non-repeated damped oscillating transient waves in low-voltage power lines, control lines and signal lines of public and non-public networks. To provide an ideal and normative basis for the evaluation of disturbance immunity of electrical and electronic equipment for household, commercial and industrial purposes. Evaluation of ringing wave immunity of lighting products.
Conforms to the standard: IEC 61000-4-12 and IEC 61000-4-18.
A common criterion for evaluating the immunity performance of domestic, commercial, and industrial power and electronic equipment was established for the generation of ringing wave interference on power lines, control lines, and signal lines due to transients between power and control switches (or caused by lightning strikes)



Structure and Characteristics:



· 7-inch touch LCD interface, rich in functions, easy to operate, easy to upgrade software;
· Built-in single-phase 10A (16A) power network, 2 in 1, miniaturized design;

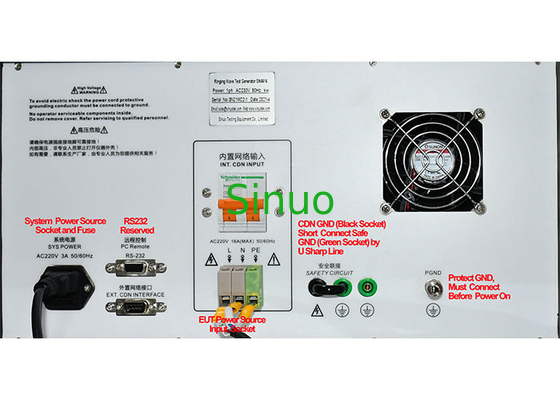

·EUT output is equipped with high-strength panel socket, which is more convenient and reliable to connect test products;
· Built-in EUT working voltage and current monitoring, over voltage and over current protection;
· Intelligent programmable high voltage power supply, built-in high voltage over voltage, over current, short circuit protection;
· Intelligent detection of ringing wave output, voltage error, no output warning;
· With self-diagnosis function, intelligently judge the abnormal output of high voltage and ringing wave;
The main switch adopts imported switch to ensure stable waveform, strong comparability and long service life

The waveform will be shown by an external oscilloscope (oscilloscope should be prepared by user)



Use Environment​:



Power supply: single phase AC220V ± 10%, 50/60Hz

Ambient temperature: 10°C~35°C

Relative humidity: 30%~60%

There should be no high concentration of dust, corrosive gas, flammable and explosive objects



Technical Parameters:



Open Circuit Voltage Oscillation Frequency (1/T) 100kHz±10%
Open Circuit Output Voltage (PK1) (250V~4000V)±10%,
Open Circuit Voltage Waveform Front (T1)(10%~90%) PK1:0.5μs±30%



Open Circuit Voltage Decay Rate

40%<(PK2)/(PK1)<110%
40%<(PK3)/(PK2)<80%
40%<(PK4)/(PK3)<80%
Short Circuit Current Wave Front (T2) (10%~90%) P1 ≤0.9μs
Short Circuit Current (PK1) at 3500V 292A ± 10% at 12Ω
Short Circuit Current (PK1) at 3500V 117A ± 10% at 30Ω
Adjacent Pulse Interval 1s~99s
Number of Pulses 1~9999 times
Output Method Automatic positive and negative polarity switching or alternation
Output Impedance 12Ω, 30Ω
Phase Injection Method Asynchronous or synchronous (0°~360°)
Sample Coupling / Decoupling Network Optional, coupling / decoupling network with lightning surge generator
