IEC60695-11-5 Needle Flame Flammability Test Chamber PLC Control

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 10 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN773
Applied Standard:
IEC60695-11-5
Control Mode:
PLC And Touch Screen
Combustion Device:
According To Standard
Combustion Angle:
According To Standard
Flame Hight:
12±1mm Adjustable
Temperature Rising:
According To Standard
Highlight:

Needle Flame Flammability Test Chamber

,

IEC 60695-11-5 Flammability Test Chamber

,

PLC Flammability Test Chamber

Product Description

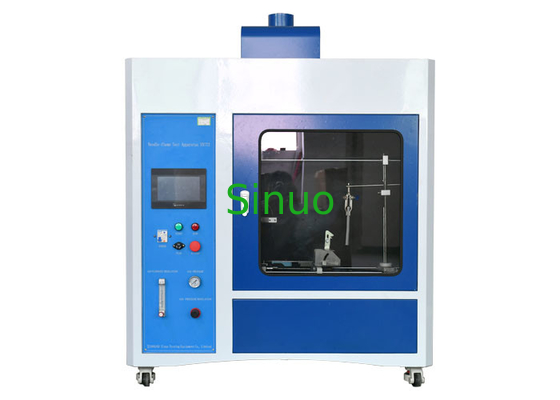

IEC60695-11-5 Needle Flame Flammability Test Chamber



Product overview:

The needle-flame test method apparatus meets the requirements of IEC60695-11-5, it is required by IEC60335-1 clause 30.2.3.2, Annex E, etc.The Needle Flame Test apparatus adopts a Ф0.9mm needle-shaped burner that tilts with the angel of 45°and provide it with butane gas. The fire hazard of the equipment when there is flammable inside the equipment that caused due to the fault condition is assessed by whether the sample can be ignited or the combustion time and length.



The Needle Flame Test chamber is equipped with an advanced PLC control and 7 inch color touch screen, which is convenience for operation. It is suitable for the research, production and quality testing department of lighting equipment, low-voltage apparatus, household appliance, machine tool electric appliance, electrical machine, electric tool, electronic instrument, electrotechnical instrument, electrical connector, electrical and electronical equipment and other components. It is also suitable for insulating material, engineering plastics or other solid combustion material industry.



Technical parameters:

Parameter/ model SN773B (PLC + touch screen version)
Working voltage Match client's local power supply requirements
Control Advanced PLC
Display 7 inch color touch screen
Timing device 9999X0.1S
Combustor Inner boreφ0.5mm ± 0.1mm, OD ≤φ0.9mm, L ≥ 35mm, stainless steel
Combustion angle tilt 45° (testing) or vertical (when adjust the height of the flame)
Height of the flame 12±1mm adjustable (with flame height gauge)
Gas category 95% Butane (should be prepared by user)
Range of temperature test 0~1000℃
Flame warming requirement From 100°to 700°, time for standard values within 23.5S±1S
Temperature thermocouple φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple
Work shop 0.5 cube, stainless steel case, dark background
Testing process Test procedure automatic control, independent air draft
Volume size adjustment Flowmeter adjustment
Equipment size & weight 1100mm* 550mm* 1100mm, 120KGS
Conforms to standard IEC 60695-11-5, IEC60335-1, etc.
