IEC 61009-1 Residual Current Protector Device Action Characteristic Tester
  • name
  • name
  • name
  • name

IEC 61009-1 Residual Current Protector Device Action Characteristic Tester

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 1 Months
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 5 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2502
Applied Standards:
IEC61009-1,IEC60898-1,IEC61008-1
Current Voltage Accuracy:
Class 1; C: 0.1mA; V: 0.1V
Power Consumption:
Maximum 500W
Current Output Range:
AC：5~2000mA
Timing Accuracy:
5mS, Resolution 1mS
Output Voltage:
0~250V
Highlight:

Anechoic EMC Test Chamber

,

CISPR25 EMC Test Chamber

,

Automotive ESA EMC Test Chamber

Product Description



IEC 61009-1 Residual Current Protector Device Action Characteristic Tester





System overview:



The test equipment conforms to the standard requirements of IEC 61009-1:2012, IEC 60898-1:2015, IEC 61008-1:2010, etc.

It is used for automatic verification of the operating characteristics of small leakage circuit breakers, and verifies the safety performance of circuit breakers. The instrument takes ARM-7 high-speed processor as the core, equipped with high-speed true effective value A/D converter, DSS sinusoidal signal generator and power amplifier with mains tracking, the instrument automatically outputs current, and can perform action current, action time etc. test project.





Features:



➢ 24-bit high-speed and high-precision true RMS AD conversion, accurate sampling of operating current and voltage

➢ High-speed processor to accurately sample the action time

➢ Support the standard Modbus-RTU communication protocol

➢ Support quick selection of operating current for conventional products and separate setting of operating current for unconventional products

➢ 32-bit embedded processor, high-speed processing a large amount of communication data

➢ RS232/485 full-rate asynchronous serial communication interface, the maximum baud rate can reach 115200bps

➢ Isolation protection for input and output signals, safe work

➢ Software and hardware watchdog WDT design to ensure system stability

➢ The configuration parameters are stored in the flash memory, which will not be lost when the power is off, and will be stored permanently

➢ Anti-jamming design of software and hardware, can adapt to the occasions with harsh electromagnetic environment





Technical parameters:



Model SN2502
Detection platform The device is equipped with a set of three-phase leakage protection circuit breaker test interface. The leakage protection circuit breaker adopts manual wiring, and the detection station can be tested independently.
Working Power Consumption Maximum 500W
Current Voltage Accuracy Class 1; current resolution 0.1mA; voltage resolution 0.1V
Current output range AC:5~2000mA
Output Voltage 0~250V
Timing Accuracy 5mS, resolution 1mS
Type A phase selection 0 degrees (2000mA), 90 degrees (2000mA), 135 degrees (30mA)
Indicator The power switch of the device uses a self-locking switch with an indicator light, and the light on the switch lights up when the switch is turned on. There is a running indicator light on the equipment panel, and the indicator light is on when the equipment is running
Dimension 430mm×370mm×280mm
Weight About 30 KG


Details Display:

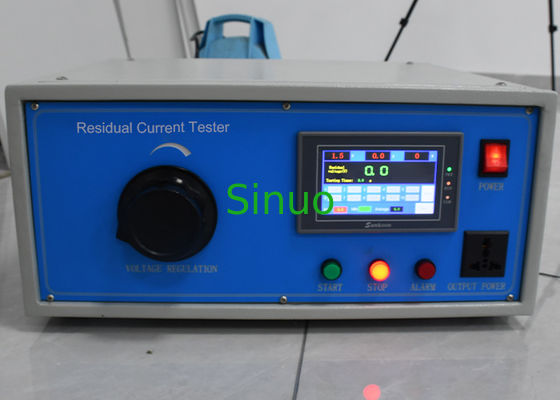

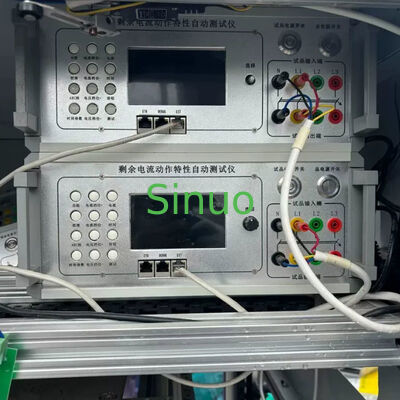

IEC 61009-1 Residual Current Protector Device Action Characteristic Tester 0
