20MPa Ceramic Material Fuchsine Spirit Pressure Test Apparatus IEC 60335-1
  • name
  • name
  • name
  • name

20MPa Ceramic Material Fuchsine Spirit Pressure Test Apparatus IEC 60335-1

MOQ: 1
Price: Customized
Standard Packaging: Plywood case
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 10 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1110
Test Pressure:
0~20MPa
Pressurization Method:
Manual Pressurization
Boost Rate:
100KPa/s
Container Volume:
100ml
Container Material:
Stainless Steel
Test Medium:
Fuchsine And Methylated Spirit
Standard Applied:
IEC 60335-1
Clause Applied:
Clause 22.32
Highlight:

Fuchsine Spirit Pressure Test Apparatus

,

IEC 60335-1 Pressure Test Apparatus

,

20MPa Ceramic Pressure Test Apparatus

Product Description



20MPa Ceramic Material Fuchsine Spirit Pressure Test Apparatus IEC 60335-1



Standards & Clauses:

This ceramic material fushine spirit pressure test machine meets the requirements of IEC 60335-1 clause 22.32. It is use to determine if ceramic material is tightly sintered.

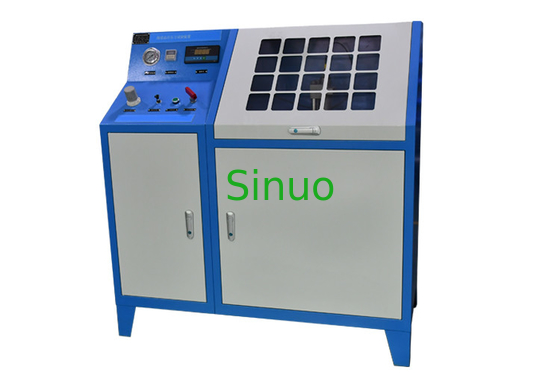

This test machine includes the test container, pressure boosting device and explosion-proof chamber with observation window, the whole operation is easy and safe.



Technical Parameters:

Test container



 Volume >100ml, pressure bearing capacity >15MPa, made of stainless steel
Power supply Match client's local power supply
Pressure hold time 0~99s can be set
Maximum test pressure 20MPa
Pressurization method Manual pressurization
Test pressure range 0~20MPa±0.5MPa, can be adjusted
Boost rate 100KPa/s
Display mode Digital display



Test Principle:

The ceramic material is broken into pieces that are immersed in a solution containing 1 g of fuchsine in each 100 g of methylated spirit. The solution is maintained at a pressure not less than 15 MPa for a period so that the product of the test duration in hours and the test pressure in megapascals is approximately 180.



20MPa Ceramic Material Fuchsine Spirit Pressure Test Apparatus IEC 60335-1 0
