Φ1200mm Automatic Inclined Plane IEC 60335 Electrical Lab Test Equipment

Φ1200mm Automatic Inclined Plane IEC 60335 Electrical Lab Test Equipment

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 60 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 1 set per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1105B-1.2M
Plane Diamater:
1200mm
Inclined Angle:
0~30°
Control Method:
PLC
Display & Operation:
Siemens Touch Screen
Rotation Speed:
1±0.2 Rpm
Rotation Angle:
360°
Applied Standard:
IEC 60335-1
Applied Clause:
Clause 20.1
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
60 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
1 set per month
High Light:

IEC 60335 Electrical Lab Test Equipment

,

1200mm Electrical Lab Test Equipment

,

Clause 20.1 Electrical Lab Test Equipment

Product Description

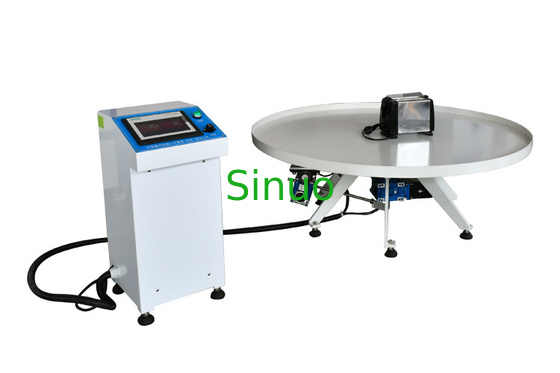

IEC 60335-1 Φ1200mm Automatic Inclined Plane


Product overviw:

This inclined plane meets the requirements of IEC 60335-1 clause 20.1. It is used to test the stability of household and similar electrical appliances such as refrigerators, washing machines, air conditioners and other appliances and similar electrical appliances, etc. under a certain tilt angle and rotation of the workbench.



Structure and function:



The inclined plane has a large working bench with diameter 1200mm, it adopts PLC control and Simens touch screen, the rotation speed and inclinded angle can be preset and controlled automatically during test. The surface of the turntable is not smooth to prevent the appliance and the turntable from sliding, and there is a 30mm height guard bar around the turntable.



Technical Parameters:

Inclined angle 0~30.0 Continuously adjustable, Siemens touch screen display, fully automatic control.
Angle accuracy 0.5
Maximum load The sample weight cannot be more than120kg.
Diameter of the turntable Φ1200mm, the surface of the turntable is not smooth to prevent the appliance and the turntable from sliding, there is a 30mm height guard bar around the turntable
Rotation speed 1±0.2 rpm
Rotation angle 360°  driven by servo motor
Transmission mode turbine worm
Machine structure 304 stainless steel plane and aluminum alloy structure.

Configuration requirements



Made of tool steel.
Angle adjustable range 30°-0°-60°.
Length: about 102mm
Width: about 46mm
Height: about 49mm



Φ1200mm Automatic Inclined Plane IEC 60335 Electrical Lab Test Equipment 0
