Integrated Electrical Appliance Door Endurance Testing Equipment IEC 60335
  • name
  • name
  • name
  • name

Integrated Electrical Appliance Door Endurance Testing Equipment IEC 60335

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 1 Month
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 5 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1401B
Applied Standards:
IEC 60335 Series
Applied Samples:
Electrical Appliances
Test Stations:
2 Station
Control Method:
PLC Intelligent Integrated Control
Display Method:
10" Touch Screen
Opening / Closing Speed:
0-360°/s(1.5m/s)
Opening / Closing Angle:
0-130°
Opening / Closing Force:
0-200N
Highlight:

IEC 60335 Door Endurance Testing Equipment

,

Appliance Door Endurance Testing Equipment

Product Description



Integrated Electrical Appliance Door Endurance Testing Equipment IEC 60335



Product information:

IEC60335-2-4:2008 “Household and similar electrical appliances-Safety-Part2-4: Particular requirements for spin extractors” clause 18

IEC60335-2-11:2008 “Household and similar electrical appliances-Safety-Part2-11: Particular requirements for tumble dryers” clause 20.101

IEC60335-2-7:2016 “Household and similar electrical appliances-Safety-Part2-7: Particular requirements for washing machines” clause 18 and 22.104

IEC 60335-2-5 household and similar electrical appliances – safety: part 2-5: particular requirements for dishwashers, clause 23.3.

IEC 60335-2-25 household and similar electrical appliances – safety: part 2-25:particular requirements for microwave ovens, including combination microwave ovens, clause 18.



Application:It is used to test the durability of the interlocking device of washing machine door or lid, and the force test when the interlock is actuated, so as to verify the reliability of the interlocking device; also used to assist other tests for repeated opening and closing operations of the washing machine door or lid.



Test sample:Electric tumble dryer, electric washing machine (including pulsator and tumble type single phase ≦ 250V, other ≦ 480V), spin extractors (Load capacity ≦10kg, tumble line speed ≦50m/s, single phase ≦250V, other ≦480V), electric dishwasher, (single phase ≦ 250V), Microwave ovens.



Structure:

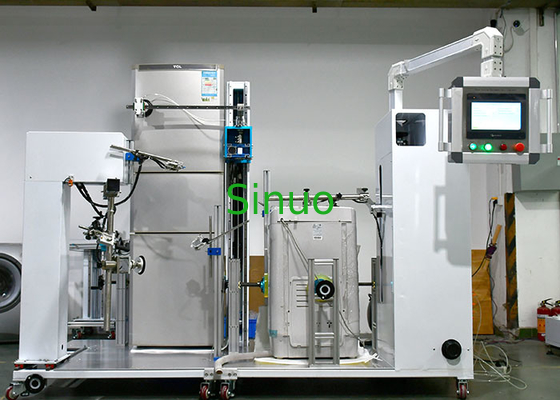

The equipment combines of electrical control cabinet (including load voltage regulating device), frame and manipulators. There are two testing station, one is for tumble washing machine with door, the other is for pulsator washing machine with lid, the two workstations can process testing independently.

Equipment dimensions: approx.: (W*D*H)2500 * 1300 * 1300 (mm)

Equipment weight: 300kg



Technical parameters:



Power Supply AC220V±10%/ 50 Hz, power 6KW (can be customized)
Test Stations

2 independent stations, one is for tumble washing machine with door, the other is for pulsator washing machine with lid

Or 2 stations for tumble washing machines (optional)
Control Method PLC intelligent integrated control, 7-inch humanized touch interface operation
Drive Mode Servo motor drive

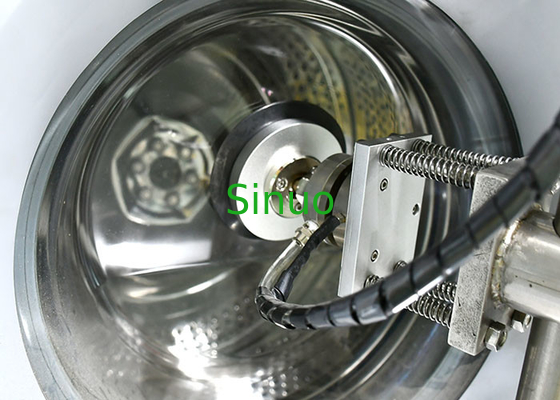

Clamping Method for Specimen Vacuum suction cup, pneumatic
Door/Lid Opening or Closing Speed 0-360°/s(1.5m/s), can be preset
Door/Lid Opening or Closing Angle 0-130°,can be preset
Test Times 0-999999times, can be preset
Door/Lid Opening or Closing Force 0-200N, can be preset (the opening force value is only for the pull test when the interlock device is actuated to lock the door)
Load Voltage 0-250V, adjustable
Auxiliary Action Mechanism Washing machine starts pressing cylinder (can be customized)
Test Contents

IEC60335-2-4:2008 “Household and similar electrical appliances-Safety-Part2-4: Particular requirements for spin extractors” clause 18

IEC60335-2-11:2008 “Household and similar electrical appliances-Safety-Part2-11: Particular requirements for tumble dryers” clause 20.101

IEC60335-2-7:2016 “Household and similar electrical appliances-Safety-Part2-7: Particular requirements for washing machines” clause 18 and 22.104

IEC 60335-2-5 household and similar electrical appliances – safety: part 2-5: particular requirements for dishwashers, clause 23.3.

IEC 60335-2-25 household and similar electrical appliances – safety: part 2-25: particular requirements for microwave ovens, including combination microwave ovens, clause 18.

IEC 60335-2-9 clause 23.3 flexing for appliance can opened in 2 position

IEC 60335-2-24 clause 23.3 flexing test for conductors that are flexed
Safety Protection
Power Leakage protection, overload and short circuit protection
Motor Overload, short circuit protection

Integrated Electrical Appliance Door Endurance Testing Equipment IEC 60335 0
