| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 20 Sets Per Month |

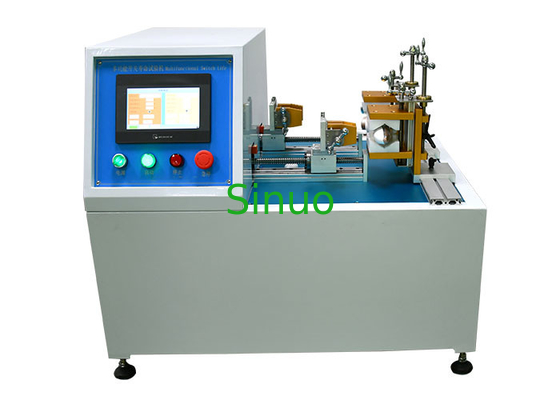

UL859 Electrical Beauty Care Appliance Buttons EnduranceTest Machine
Product overview:
This temperature measuring device is designed and manufactured according to UL 859. It is suitable for verifying the durability of linear action switches on various electrical appliances, such as key switches, toggle switches, and rocker switches, and assessing whether the switch can withstand mechanical damage and electrical fatigue damage in normal use, as well as whether there is contact adhesion or long-term closing or disconnection, and check whether it has excessive wear and other harmful consequences. .
Working principle:
The servo motor drive mechanism is used to perform repeated actions such as linear pressing, flipping, and rotating on the buttons, and at the same time, it can be used with an external load to perform on-off tests. The power-on and power-off time, test speed, and stroke can all be preset through the touch screen.
Technical Parameters:
| Test station | 2 statio |
| Control | PLC intelligent integrated control with 7-inch touch screen |
| Drive Mm | Driven by servo motor |

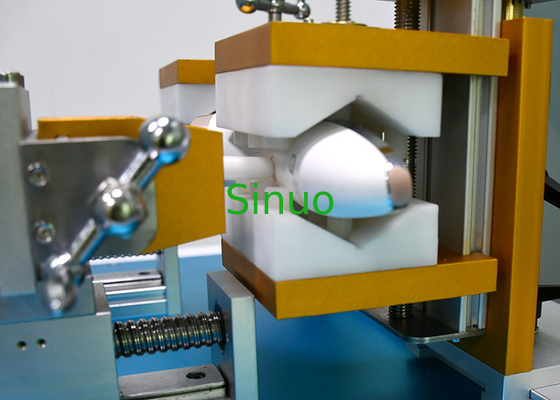

| Clamping method for sample | Mechanical clamping, clamping point position is adjustable |
| Replaceable mechanism | General mechanism, push-button switch push rod, toggle switch mechanism, rocker switch pulley mechanism |
| Linear stroke | 0-100mm, can be preset |
| Conduction time | 0-99.9s, can be preset |
| Test speed | 15 times/min, 7.5 times/min, 30times/min, can be preset |
| Test times | 0~999999 times, can be preset |
| Test load | External (prepared by user or optional) |
| Equipment dimensions | Approx. 800×800×800(mm)W×D×H,weight: 100kg |
|
|
