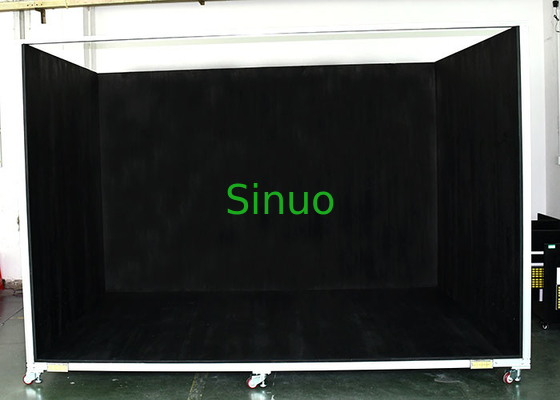

IEC60335-1 3M Large Temperature Measuring Test Corner
Equipment Overview:
This test corner meets the requirements of IEC 60335-1:2016 “Household and similar electrical appliances-Safety-Part1:General requirements” clause 11.
The test corners are mainly used to provide environmental conditions that meet the standard requirements for temperature rise testing of various electrical and electrical products.
The test corners with different distribution specifications, numbers of temperature measuring points and external dimensions can be customized according to the actual tested samples.
Technical Parameters:
| Equipment structure | Four-panel structure, 1 base plate, 3 side plates |
| Dimensions |
WDH=3000X2000X2000mm Other dimensions can be customized |
| Thermocouple | American original OMEGA thermocouple, diameter <0.3mm, PTFE Teflon PFA, insulation layer temperature resistance -200℃ to 260℃, core diameter: 2X0.255mm |
| Thermocouple Arrangement | All lead to the terminal block or wiring according to client's requirements |
| Temperature Measurement Copper | 15mm diameter, 1mm thick brass sheet painted in black, the front surface of the round copper sheet is flush with the surface of the plywood |
| Temperature Measurement Points | 16 points per each surface, total 64 temperature measuring points |
| Temperature Measurement Point Arrangement | 100×100mm square distribution, can be customized 76×76mm or 50×50mm |
| Plywood | 20mm thickness, matte black paint on the front and gray film on the back |
| Frame material | It is fixed by industrial aluminum frame, the thickness of aluminum is 1.5mm, bottom load-bearing reinforcement, bottom cushion profile or sleeper |
| Equipment features | The temperature measuring test corner can be moved, the bottom is equipped with 2 or 3 inch flat-bottomed brake wear-resistant corner wheels, the total height is about 100mm, and the load is ≥1000kg |
| Optional | Temperature measuring and recording instrument |
Test Principle:
Thermocouples used for determining the temperature rise of the surface of walls, ceiling and floor of the test corner are attached t the back of small blackened disks of copper or brass, 15mm in diameter and 1mm thick. The front of the disk is flush with the surface of the board. The thermocouples are connected to the temperature measurement instrument to monitor the temperature at each point in real time.
Customized service:
Sinuo can customize different sizes with different temperature measuring distribution according to client's specific requirements. And our test corners are well painted, the themocouples and measuring coppers are well arrayed, all the themocouples are leaded to the terminal block, which is covenient for client to connect to the temperature measuring and recording instruments.
|
|
