Accessories For Flammability Test Chamber Gauges Electrodes Burners

MOQ:	1
Price:	Negotiable
Standard Packaging:	Carton Box
Delivery Period:	5 Days
Payment Method:	T/T, L/C, Western Union, MoneyGram
Supply Capacity:	100 Sets Per Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Sinuo

Certification

Calibration Certificate (Cost Additional)

Model Number

SN7712

Glow Wire U Head:

Ф4mm ± 0.04mm

Thermocouple:

Ф1mm Or Ф0.5

Silk Paper:

12-30g/m2

Pine Board:

180×180×10mm

Copper Head:

Match Different Standard Requirements

Platinum Electrode:

Platinum Purity Greater Than 99.0%

Highlight:

Flammability Test Chamber accessories

30g/m2 Flammability Test Chamber Gauges

1mm Flammability Test Chamber Burners

Product Description

Accessories for Flammability Test Chamber Gauge Thermocouple Burner

Product overview:

These accessories are for various of flammability test chambers, such as glow wire test apparatus, needle-flame test apparatus, tracking leakage test apparatus, horizontal and vertical burning test apparatus.

Technical Parameters:

Name & Model No.:	Flammability Accessories
Glow wire U head	Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) standard shape
Ф1mm thermocouple	Ф1 Armored nickel-chromium/nickel-aluminum wire, K type, temperature resistance 1100°
Ф0.5mm thermocouple	American original Omega Ф0.5 armored nickel-chromium/nickel aluminum wire, K type, temperature resistance 1100°
Silk paper	180×180mm,12-30g/m²
Pine board	180×180×10mm
Temperature measuring copper head	50W:Ф5.5±0.01mm；500W: Ф9.0±0.01mm; needle-flame: Ф4.0±0.01mm
Platinum electrode	(5.0±0.1)×(2.0±0.1)mm, 30°±2° bevel, blade width 0.01-0.1mm, platinum purity greater than 99.0%

Sinuo have various of spare parts for flammability test chambers, these spare parts are strictly made according to the requirements of different standards, can pass third party calibration.

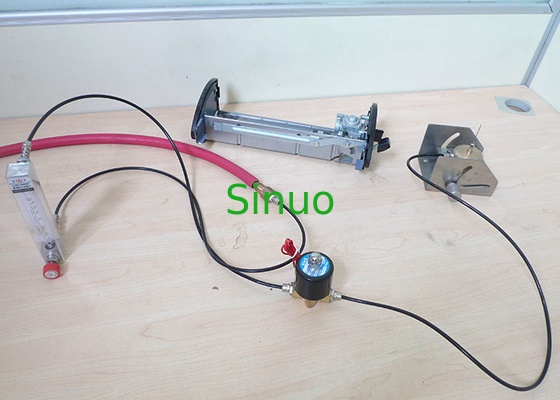

Accessories For Flammability Test Chamber Gauges Electrodes Burners 0

How to prepare a new glow-wire?

A new glow wire shall be annealed for a total at least 10 h by being subjected to a current of at least 120A before being sued for a test run. The total annealing time may be achieved cumulatively. To avoid damage, the thermocouple shall not be installed during annealing. At the end of annealing, the depth of the thermocouple pocket hole shall be verified.

The glow-wire in the glow-wire test apparatus
