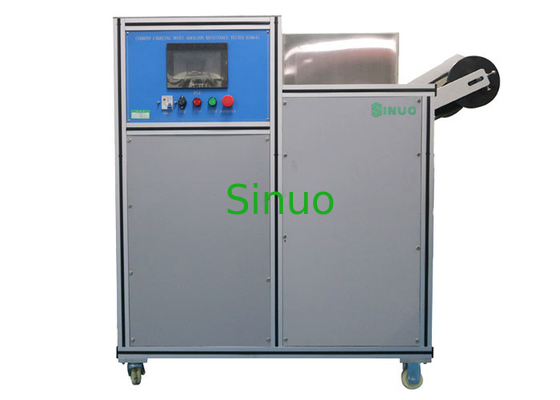

Vacuum Cleaner Current Carrying Hoses 30RPM Abrasion Resistance Test Equipment

Vacuum Cleaner Current Carrying Hoses 30RPM Abrasion Resistance Test Equipment

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1703
Crank Rotation Speed:
30RPM
Hose Moving Distance:
300mm
Test Mass:
1KG
Abrasive Belt:
Corundum Grit Size P 100
Control:
PLC
Display:
Touch Screen
Test Stations:
3 Stations, Can Be Customized
Applied Stantard:
IEC 60335-2-2 Clause 21.102
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
20 sets per month
High Light:

30RPM Abrasion Resistance Test Equipment

,

Hoses Abrasion Resistance Test Equipment

Product Description



IEC 60335-2-2 Vacuum Cleaner Current-Carrying Hoses Abrasion Resistance Test Equipment



Product Overview:



This current-carrying hoses abrasion resistance test equipment meets the standard of IEC60335-2-2, clause 21.102 figure 101. Suitable for verifying the vacuum cleaners or water-suction cleaning appliances's current-carrying hoses shall be resistant to abrasion.



Test Procesures (Extracted from IEC 60335-2-2 clause 21.102):



One end of the hose is attached to the connecting rod of the crank mechanism shown in Figure 101. The crank rotates at 30 revolutions per minute resulting in the end of the hose moving horizontally backwards and forwards over a distance of 300mm.



The hose is supported by a rotating smooth roller over which a belt of abrasive cloth moves at a speed of 0.1 m/min. The abrasive is corundum grit size P 100, as specified in ISO 6344-2. A mass of 1 kg is suspended from the other end of the hose, which is guided to avoid rotation.



In the lowest position, the mass has a maximum distance of 600 mm from the centre of the roller.



Test test is carried out for 100 revolutions of the crank.



After the test, basic insulation shall not be exposed and the electric strength test of clause 16.3 is carried out between the conductors connected together and the saline solution.



Technical Parameters:



Power supply Match client's local power supply requirements
Control and operation PLC intelligent electrical control, touch screen operation
Working station 3 stations, synchronous working
Crank rotation speed 30r/min, can be preset
Horizontal moving distance of the hose 300mm
Belt of abrasive cloth moving speed 0.1m/min
Test times 0-999999 times, can be preset
Abrasive belt Corundum grit size P 100, as specified in ISO 6344-2.
Mass weight 1 kg
Mass has a maximum distance from the centre of the roller 600 mm
Size and weight 1000×900×1100mm, 100kg


How to install the specimen?



Attach one end of the hose to connecting rod of the crank mechanism,suspended a mass of 1kg from the other end of the hose, which is guided to avoid rotation

Vacuum Cleaner Current Carrying Hoses 30RPM Abrasion Resistance Test Equipment 0
