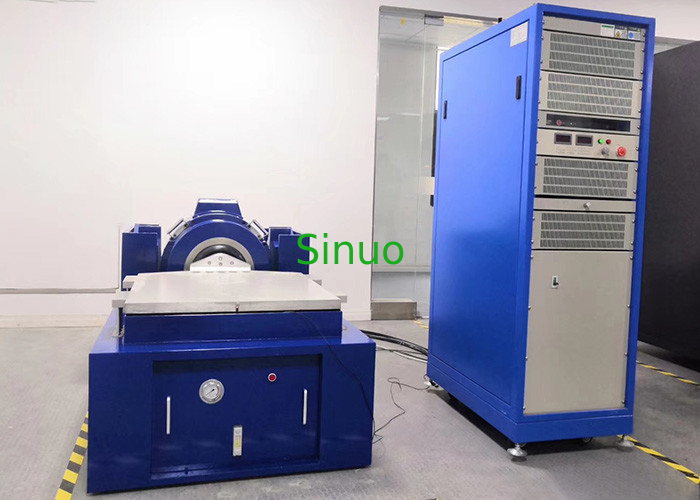

2000kgf Electrodynamic Vibration Generator for Automotive Components Durability Testing
System Overview:
The vibration test system can simulate the possible impact damages to the products or packages during transportation and handling, it can be used to find early failure of the vehicle components, also be used for fatigue testing to assess the life of the vehicle components. This testing system has a wide range of applications, wide application area, and significant and reliable test results. It is an ideal automotive-components vibration testing equipment for automotive manufacturers, quality inspection departments and research institutes.
Test system composition:
The vibration test system consists of one-piece of horizontal vibration generator / vertically-expanded tabletop / cooling fan with muffler /digital switching power amplifier / vibration control measuring instrument. In addition, vertical expansion countertops can be customized or optional according to the sizes of the client's specimen, and can be combined with an environmental test chamber to form an integrated environmental test system.
Technical Parameters (most of the parameters can be customized according to specific specimen and standard requirements):
| Vibration generator | |
| Sine Force | 2000kgf (20000N) |
| Random Force | 2000kgf (20000N) |
| Impact Force | 4000kgf (40000N) |
| Frequency Range | 5～3000Hz |
| Continuous Displacement(Amplitude) | 0-51mm, preset |
| Vibration Isolation Frequency | 2.5Hz |
| Level One Resonant Frequency | 2600±5%Hz |
| Countertop Screw | 17*M10 |
| Magnetic Flux Leakage | <1MT |
| Maximum Speed | 2m/s |
| Maximum Acceleration | 980m/s2 (100g) |
| Equivalent Mass of Moving Parts | 20kg |
| Dynamic Coil Diameter | Φ280mm |
| Max. Loading | 300Kg |
| Weight | 2695kg |
| Switching Power Amplifier | |
| Amplifier Output | 21KVA |
| Rated Output Voltage | 120Vrms |
| Signal to Noise Ratio | >65dB |
| Power Amplifier Efficiency | ＞95% |
| System Protection | Temperature protection, over-displacement protection, over-voltage protection, over-current protection, under-voltage protection, external protection, logic fault protection |
| Dimensions | 1800*900*800mm |
| Weight | 450kg |
| Vertical Expansion Countertop | |
| Table Size | 1000mm×1000mm |
| Table Weight | 60kg |
| Highest frequency | 200Hz |
| Level Table | |
| Table Size | 1000mm×1000mm |
| Table Weight | 60kg |
| Highest frequency | 200Hz |
| Computer and Related Accessories | |
| Host | Lenovo |
| Monitor | Customized according to the reserved position of the electric chamber |
| Fan | |
| Fan Power | 7.5KW |
| Air volume | 0.71M3/s |
| Wind Pressure | 3.5Kpa |
| Dimensions | 500*300*200mm |
| Duct length | 4m |
| Weight | 140kg |
| Accelerometer | |
| Sensitivity | 150pc/g |
| Frequency Range | 0.3-8000Hz±10% |
| Measuring Range | 2000g |
| Impact Resistance | 2500g |
| Line length | 5m |
| Operating Temperature | -40-150℃ |
| Weight | 35Gram |
| Installation Method | M5 |
System Working Diagram:
