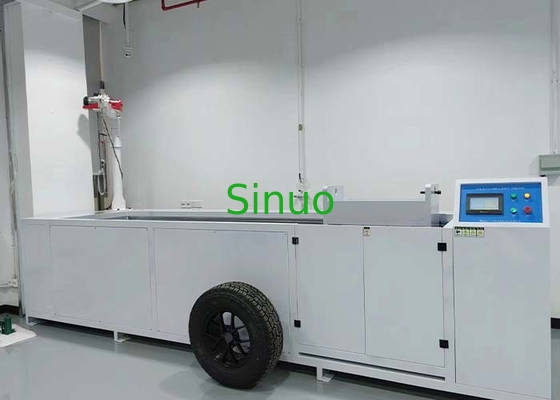

IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment

IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment

MOQ: 1
Price: Negotiation
Standard Packaging: Plywood Case
Delivery Period: 1 Month
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN11010
Crushing Force:
5000N And 11000N
Roll Over Speed:
(8±2)km/h
Drive Over Tire:
Michelin Tire (P225 / 75R15)
Air Pressure Of Tire:
(220±10) KPa
Test Floor:
Concrete Surface
Control Mode:
PLC Control
Applied Standard:
IEC 62196 Clause 33
Testing Purpose:
Drive Over Testing
Minimum Order Quantity:
1
Price:
Negotiation
Packaging Details:
Plywood Case
Delivery Time:
1 Month
Payment Terms:
T/T
Supply Ability:
20 Sets Per Month
High Light:

IEC 62196 Vehicle Plugs Testing Equipment

,

11000N Drive Over Vehicle Tester

Product Description



IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment



System introduction:



The test equipment is used to check whether a plug or vehicle connector shall have adequate resistance to damage from being driven over by a vehicle, unless it is provided with a cable management system which prevents the accessory from being left on the ground. It is required by IEC 62196-1:2022 clause 33, IEC 62752:2016 clause 9.34, etc.



Accessories wired with the minimum size cable of a type recommended by the manufacturer shall be placed on a concrete floor in any normal position of rest. A crushing force of (5000±250) N or (11000±550) N shall be applied by a conventional automotive tire, P225/75R15 or an equivalent tire suitable for the load, mounted on a steel rim and inflated to a pressure of (2.2±0.1) bar. The wheel is to be rolled over the vehicle connector or plug at a speed of (8±2) km/h. The accessory is to be oriented in a natural resting position before applying the force in a different direction for each sample. The accessory under test shall be held or blocked in a fixed position so that it does not move substantially during the application of the applied force. In no case is the force to be applied to the projecting pins.



Applied standard:



IEC 62196-1: 2022 clause 33.

IEC 62752:2016 clause 9.34



Structure:



The entire equipment adopts a cold-rolled steel plate protective box structure design. The surface of the box is treated with Teflon paint. The bottom of the box is covered with simulated cement floor. The rolling mechanism can simulate a car tire sliding up and down freely after rolling over an object. The charging pile plug bear the same pressure. The driving device drives the rolling mechanism to achieve forward and backward rolling movements. The main components are made of stainless steel and aluminum parts. Ensure that the tire is rolling over the sample under normal rolling conditions. The main features are as follows:

1. The equipment chassis is equipped with a protective cover to ensure the safety of the test process. The bottom of the box is equipped with shock-absorbing foot pads and a pulley structure for easy installation and disassembly. Guided by heavy-duty slide rails, the roller set slides. The power combined with a high -power motor combined with the turbine reducer, driving the spindle rotation, and the test speed is promoted for crushing test. The specimen fixing device is equipped with an installation fixture for functional box of the specimen to meet standard requirements.

2. The drive over pressure adjustment device is designed with an upper and lower adjustable structure. The tires, upper and lower sliding frames and counterweights borne by the specimen are the total weight of the test.

3. The equipment adopts the working mode of front and rear tire drive: the drive over direction is driven by the forward and reverse rotation of the motor to drive the tire rolling. Keep the specimen stationary. It can simulate the reciprocating rolling of car tires in the most realistic way. Effectively simulate rolling of the specimen.

4. The control system is an independent organization. The host machine is controlled by PLC and operated by touch screen. There are fixed mounting holes and cable openings at the bottom for easy fixing and connection.



IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment 0



Technical Parameters:



Test station Single station
Equipment placement mode Floor standing
PLC control system
  1. The PLC control system is equipped with an 7" touch screen display.
  2. The PLC control system is in English.
  3. The PLC control system is capable to record and display the test speed and force.
  4. Test force, can be selected between load A and load B.
  5. The PLC controller shall come with emergency stop button and 1 main switch.
Operation mode Manual or program-controlled operation, can be selected
Drive over power system Motor plus worm gear acceleration and deceleration
Drive over stroke 0~2.0m
Load Carrying

A. Crushing force (5000±250) N

B. Crushing force (11000±550) N

Force sensor Will be provided with an external precision force sensor to measure the total force from tyre, load, upper and lower sliding frame, power system and counter weight before testing.
Drive over speed (8±2) km/h, speed adjustable
Drive over method It is driven by a linear motor module to simulate the forward and backward reciprocating motion of rolling tires. This simulates the damage caused by accidental crushing of the plug of the charging pile when the car is moving forward or reversing in reality.
Drive over force adjustment

Using weights, the force range is adjustable from 5000N-11000N, and the weights are loaded and unloaded by cantilever crane.



Drive over tires

1. Equipped with one P225/75 R15 tire and one matching wheel hub, a set of tire inflation devices (inflation interface and air pressure gauge, for 5000N test)

IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment 1

  1. Equipped with 11000N load-bearing tire and a matching wheel hub.

IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment 2



3. The wheel load shall be mounted on a steel rim

Drive over tire pressure (220±10) kPa
Load bearing base plate

Base plate with cement/concrete floor, can be equipped with sample fixing clamp.



IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment 3IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment 4

Deceleration method Our company has designed a braking mechanism to prevent rigid collisions.
Safety protection

IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment 5



The whole machine is equipped with a protective fence to prevent the wheels from accidentally deflecting and prevent mechanical injuries to personnel.

With leakage protection switch.

With motor overload protection.

Usage environment

Power supply: AC380V±10 %, 50Hz.

Overall dimensions: approximately W4700*D1300*H3000mm;

Weight: approximately 2400kg



The equipment adopts the working mode of front and rear driving of the tire (the direction of rolling is driven by the positive and negative rotation of the servo motor), keeping the sample fixed, achieve the most realistic simulation of the reciprocating rolling of the automobile tire, thus effectively carrying out simulated crushing on the specimen.



IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment 6

IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment 7

IEC 62196 11000N Vehicle Connectors and Plugs Drive Over Testing Equipment 8
