Plug Socket - Outlet 100N Test Device For Testing Non - Solid Pins IEC 60884-1 Figure 14

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Carton Box
Delivery Period: 15 days
Payment Method: L/C, T/T
Supply Capacity: 100 Sets / Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(cost additional )
Model Number
SN2114
Standard Clause:
IEC60884 Clause 14.2
Test Sample:
Plug Pins
Load Weight:
100N
Steel Rod:
Φ4.8mm
Test Time:
1 Minute
Frame Material:
Stainless Steel
Highlight:

switch endurance tester

,

switch life testing machine

Product Description

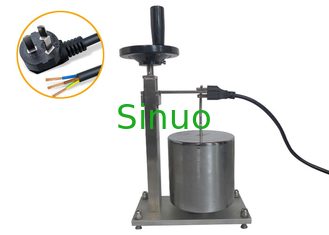

IEC 60884-1 Clause 14.2 Figure 14 Device for Testing Non-Solid Pins



Product information:



The appliance is checked by the test of IEC60884-1 clause 14.2, figure 14, for checking pins which are not solid whether can withstand the sufficient hardness.



Plug Socket - Outlet 100N Test Device For Testing Non - Solid Pins IEC 60884-1 Figure 14 0

Technical parameters:



No.: Specifications
Load weight 100N
Steel rod Φ4.8mm
Time for force application 1 minute
Equipment material Stainless steel



Test process:



1. When using the instrument for the first time, horizontal position adjustment is needed, first place the tester in a horizontal table, and adjust the four feet of the tester, until the horizontal bubble is in the center position.



2. A force of 100 N is exerted on the pin, which is supported as shown in figure 14, last 1 min in a direction perpendicular to the axis of the pin, the force is applied by theΦ4.8 mm steel rod, the axis of which is also perpendicular to the axis of the pin.



3. During the application of the force, the reduction of the dimension of the pin at the point where the force is applied shall not exceed 0.15 mm.



4. After removal of the rod, the dimensions of the pin shall not have changed by more than 0.06 mm in any direction,



5. The equipments should be cleaned and maintained after completing the test.



Plug Socket - Outlet 100N Test Device For Testing Non - Solid Pins IEC 60884-1 Figure 14 1

Tags:

switch endurance tester,

Switch tester,

plug socket tester
