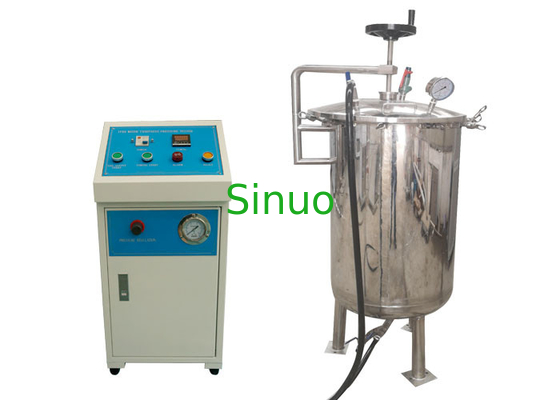

Stainless Steel High Pressure Cylindrical Water Tank for IPX8 Continuous Immersion Testing
Overview:
The high pressure water tank is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under continuous immersion in water at degree IPX8.
Standards compliant:
Structure:
The test chamber is made of stainless steel, and the cover is automatically lifted by a cylinder. It is easy for operation, with functions of safety valve protection and automatic pressure relief.
Test Principle:
By controlling the depth of the sample in the water to achieve a standard equivalent pressure, and simulating water depth pressure by applying a certain pressure of air pressure, to produce water pressure across the entire surface of the specimen enclosure. The water depth range simulation of IPX8 is harsher than IPX7.
Technical parameters:
| Control & Operation | Push-button operation or PLC control (Optional) |
| Chammber Size |
Inner size: Ф600×1200mm, outer size: WDH=800×980mm×1850mm (Or can be customized) |
| Water Depth Test Range |
0-50 m (Or can be customized) |
| Air Pressure Corresponding Adjustment Range |
0-0.5MPa, can be automatically adjusted by pressure sensor, accuracy: 0.001MPa (Or can be customized) |
| Safety Valve Discharge Pressure |
0.55MPa (Or can be customized) |
| Test Duration | 0-9999 min |
| Safety Protection | Leakage protection, short circuit protection, safety valve overpressure protection |
| Water Tank Material | Stainless steel |
| Input Power Supply | Match client's local power supply requirements |
