CISPR22 Conducted Emission CE 30MHz~6GHz Frequency Range EMI Emission Test System

CISPR22 Conducted Emission CE 30MHz~6GHz Frequency Range EMI Emission Test System

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 60 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 1 set per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN663
Test Samples:
ISM, ITE And Others
Test Environmen:
Shielded Room
Main Devices:
EMI Receiver,software And Etc.
Frequency Range:
30MHz-6GHz
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
60 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
1 set per month
High Light:

emc test systems

,

emc testing laboratory

Product Description

CISPR22 Conducted Emission CE 30MHz~6GHz Frequency Range EMI Emission Test System



Standards & Clauses:



CISPR11 / GB4824: Industrial, scientific and medical (ISM) radio-frequency equipment and similar equipment –Radio-frequency disturbance characteristics –Limits and methods of measurement
CISPR 12: Vehicles, boats and internal combustion engines—Radio disturbance characteristics—Limits and methods of measurement for the protection of off board receivers
CISPR13 / GB13837: Sound and television broadcast receivers and associated equipment –Radio disturbance characteristics –Limits and methods of measurement
CISPR14-1 / GB4343.1: Electromagnetic compatibility. Requirements for household appliances, electric tools and similar apparatus -Part 1: Emission
CISPR15 / GB17743: Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
CISPR22 / GB9254: Information technology equipment – Radio disturbance characteristics –Limits and methods of measurement



Samples and Restrictions:



Industrial, scientific and medical (ISM) radio-frequency equipment; vehicles, boats and internal combustion engines; sound and television broadcast receivers and associated equipment; electrical lighting; information technology equipment; etc.



Application:



It is used to measure whether the EUT conducts interference to the surrounding environment through the power line and signal / control line under normal working conditions. If the interference signal is too large, it will affect the power quality of the entire power grid, thus interfering with the normal operation of other electrical appliances. During the actual test, the test object may generate strong transient signal during power-on, which may impact and damage the RF input port of the test receiver. Therefore, it is generally required to set a line between the AMN and the receiver to suppress the transient Pulse limiter for the state signal. If the test subject current is too large (for example, greater than 400A) or can not be measured using the AMN, you can use CISPR 16-1-2 specified high-impedance voltage probe measurements.



Test Principle:



The conducted emission test system mainly measures the harassment of EUT to the surrounding environment through the power line, signal port and control port under normal working conditions. The test frequency range is mainly from 9 kHz to 30 MHz. The harassment limits for different products are specified by different standards, but the basic method is the same.



Structure:



Main test equipment: receiver, artificial power network, voltage probes, EMC test software
Test environment: shielded room (not included in this system, optional, or customer should prepare it)



Use Environment​:



Power supply: 380V ± 10% 50 / 60Hz
Ambient temperature: 5 °C ~ +40 °C, there should be no high concentration of dust, corrosive gas, flammable and explosive objects



Technical Parameters:



CE Test Frequency Range 30MHz~6GHz
EUT Capacity Single-phase 230VAC/16A, three-phase 400VAC/32A, three-phase 400VAC/63A (configured as needed)
Main Test Equipment EMI receiver, artificial power network, voltage probes, EMC test software
Test Environment Shielded room
Amplifier Gain During the test, the output terminal of the artificial power network should be 0.8m away from the terminal of the EUT, and connected by two power lines of a 0.8m long three-core flexible cable. The height of the bench-top EUT is required to be 0.8m or more, and the height of the floor-standing EUT is required to be 0.1m or more. Grounded metal plates are placed on the wall and the ground, and the EUT is 0.4m away from the vertically grounded metal plates.

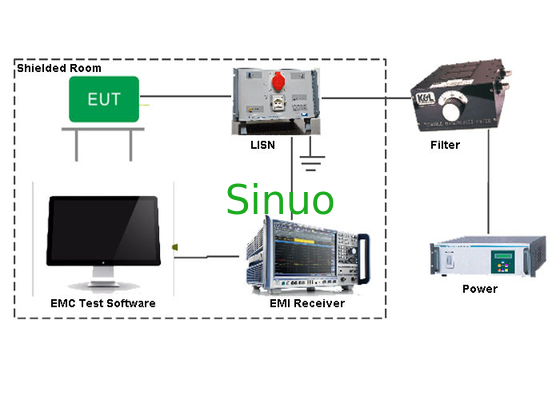

Schematic Diagram CISPR22 Conducted Emission CE 30MHz~6GHz Frequency Range EMI Emission Test System 0
