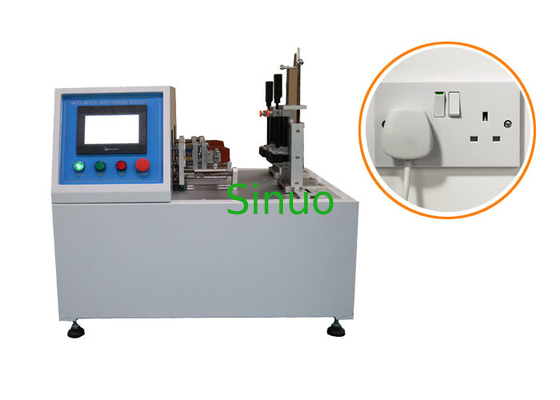

IEC60884-1 Switch Life Tester Plugs Sockets Switches Breaking Capacity Endurance Test
  • name
  • name
  • name
  • name

IEC60884-1 Switch Life Tester Plugs Sockets Switches Breaking Capacity Endurance Test

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2116
Test Station:
Can Be Customized
Control Method:
PLC
Drive Mode:
Servo Motor
Linear Stroke:
0-100mm,
Rotation Angle:
0-360°
Load Power:
External
Highlight:

switch endurance tester

,

switch life testing machine

Product Description



Plugs Socket-outlets Switches Breaking Capacity and Normal Operation Endurance Testing Equipment



Standards & Clauses:



IEC60884-1:2013 “Plugs and socket-outlets for household and similar purposes- Part1: General requirements” clause 20 and 21

IEC61058-1:2016 “Switches for appliances Part1: General requirements” clause 17

IEC60669-1:2017 “Switches for household and similar fixed-electrical installations - Part1: General requirements” clause 18 and 19

IEC60320-1:2018 “Appliances couplers for household and and similar general purposes- Part1:General requirements” clause 19 and 20



Samples and Restrictions:



Various plugs and sockets, appliance couplers, switches and other similar electrical accessories.

IEC60884-1 Switch Life Tester Plugs Sockets Switches Breaking Capacity Endurance Test 0

Application:



It is used to check the breaking capacity and normal operation endurance of switches, plugs and sockets, couplers for household and similar fixed electrical installations, to assess whether the switch, plug and socket can withstand mechanical hazards and electrical fatigue damage during normal use, whether there is contact sticking or long-term closure or disconnection, and whether there is excessive wear and other harmful consequences.



Test Principle:



The test equipment adopts the servo motor to drive the fixture mechanism, then the sample is linearly pressed, toggled, rotated, etc., and supplied with load voltage and current. The test time, test speed, stroke, and angle can all be preset on the touch screen.



Structure:



It adopts integral frame, servo motor, precision ball screw and synchronous belt, 7-inch color touch screen for humanized operation and with powerful digital display function, PLC intelligent control system, three-axis adjustable fixtures, which can test most of the button switches, toggle switches, rocker switches, rotary switches, plugs and sockets.



Use Environment:



Power supply:AC220V±10%/50-60Hz or match client's local power supply requirements

Working temperature 0-40 ° C, humidity 30%-90%



Technical Parameters:



Model SN2116A SN2116B
Test Station

2 stations (three combination as following can be optional):

2 linear independent stations; or 2 rotation independent stations; or 1 linear 1 rotation independent stations



6 stations:

3 linear sync stations and 3 rotation sync stations
Electrical Control Method PLC intelligent integrated control, 7-inch humanized touch screen operation PLC intelligent integrated control, 7-inch humanized touch screen operation
Drive Mode Servo motor drive Servo motor drive
Sample Clamping Method

Mechanical clamping method, the position of clamping point of the 3-axis fixture can be adjustable



Mechanical clamping method, the position of clamping point of the 3-axis fixture can be adjustable


Replaceable Mechanism Universal fixtures, push rod for button switches, toggle mechanism for toggle switches, pulley mechanism for rocker switches
Universal fixtures, push rod for button switches, toggle mechanism for toggle switches, pulley mechanism for rocker switches
Linear Stroke 0-100mm, can be preset 0-100mm, can be preset
Rotation Angle 0-360°, multiple gears can be preset 0-360°, multiple gears can be preset
Conduction Time 0-99.9s, can be preset 0-99.9s, can be preset
Test Speed 15 times/min, 7.5 times/min, 30times /min, can be preset 15 times/min, 7.5 times/min, 30times /min, can be preset
Test Times 0~999999 times, can be preset 0~999999 times, can be preset
Load Power Supply External, 2 channels terminal blocks External, 6 channels terminal blocks
Optional Considerations The rotary switches can be only tested on rotation station, the button switches, toggle switches, rocker switches, plugs and sockets can be tested on the linear stations. The rotary switches can be only tested on rotation station, the button switches, toggle switches, rocker switches, plugs and sockets can be tested on the linear stations.
Test Contents

Breaking capacity testing for switches

Normal operation endurance testing for switches

Breaking capacity testing for plugs & socket-outlets

Normal operation endurance testing for plugs & socket-outlets

Breaking capacity testing for appliance couplers

Normal operation endurance testing for appliance couplers

Breaking capacity testing for switches

Normal operation endurance testing for switches

Breaking capacity testing for plugs & socket-outlets

Normal operation endurance testing for plugs & socket-outlets

Breaking capacity testing for appliance couplers

Normal operation endurance testing for appliance couplers
Dimensions & Weight Approximately:800×800×800(mm)W×D×H, 100kg Approximately:1200×800×800(mm)W×D×H, 150kg

Tags:

switch endurance tester,

Switch tester,

plug socket tester
