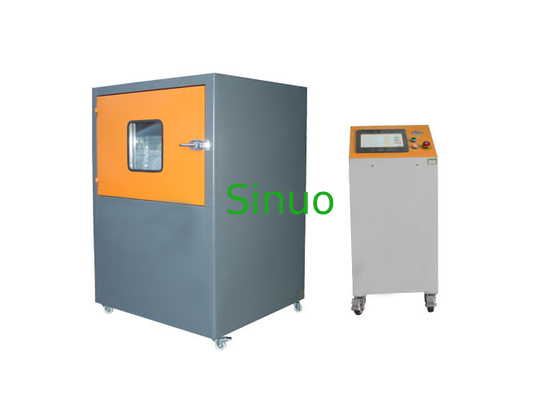

UL 2054 Battery Fire Exposure Burning Resistance Projectile PLC Control Testing Machine
  • name
  • name

UL 2054 Battery Fire Exposure Burning Resistance Projectile PLC Control Testing Machine

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 1 Month
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 20 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN557
Burner:
Bunsen Burner
Flame Height:
(10~75)mm±2mm
Test Cover:
Octagonal
Fire Ignition:
Automatic
Display:
Touch Screen
Control:
PLC & Remote Control
Highlight:

battery charge discharge test equipment

,

battery discharge analyzer

Product Description

UL 2054 Battery Fire Exposure Burning Resistance Projectile PLC Control Testing Machine



Overview:



This battery burning test equipment is a necessary testing equipment for various battery manufacturers, quality inspection & control departments. With features of easy operation, safety reliable, high accuracy, it becomes an ideal testing machine for battery burning and ejection testing.



Standards Compliant:



It conforms to UL2054 clause 22 figure 22.1, IEC60086-4: 2014 clause 6.2.5 & 6.2.7 figure 1, IEC62133, UL 1642, GB31241, etc..



Technical Parameters:



Burner Bunsen burner, pipe inner diameter 0.375inch(9.5mm)length about 100mm
Flame Applicate Time 0~999.9s±0.1s
Flame Continuous Time 0~999.9s±0.1s
Flame Height 10~75±2mm
Testing Bar Diameter 1/4 inch(6.35mm)×14 inch(355.6mm)
Testing Aluminum Mesh Diameter 0.010 inch (0.25mm) 16hole×16hole
Octagonal stainless steel net cover Distance between each other 2 feet (610mm), octagonal net cover height1 feet (305mm)
Testing Hole Diameter 102mm
Fire Ignition Device Auto fire ignition
Display Method Touch Screen
Control Method PLC & remote control, whole test procedure fully automatic
Burning Gas Requirement High purity liquefied petroleum gas(Customer Prepare)
Bottom Installed with casters
Observation Window 390 X 360mm (20mm thickness tempered explosion proof glass)
Timer 4 bytes display ,0~9999(Hour,Minute,Second switchable)
Inner chamber Material SUS304 Stainless steel
Outer Chamber Material Cold rolled powder painted
Smoke Extractor Φ 150mm on back side
Overall Dimension W940XD780XH1620 mm
Power Source AC 220V ±10%, 60HZ
Power 2.0KW
Touch Screen Monitoring UL 2054 Battery Fire Exposure Burning Resistance Projectile PLC Control Testing Machine 0

Differences of mesh screens as per UL 2054 and IEC 60086-4:

UL 2054 Battery Fire Exposure Burning Resistance Projectile PLC Control Testing Machine 1
UL 2054 FIG 22.1

Eight-sided covered wire cage, 610mm (2 feet) across and 305 mm (1 foot) high, made of metal screening. The metal screening is to be constructed from 0.25 mm (0.010 inch) diameter aluminum wire with 16 to 18 wires per inch (25.4 mm)in each direction.

UL 2054 Battery Fire Exposure Burning Resistance Projectile PLC Control Testing Machine 2
IEC 60086-4 FIG 1

The screen shall be made from annealed aluminum wire with a diameter of 0.25 mm and a grid density of 6 to 7 wire per cm.
