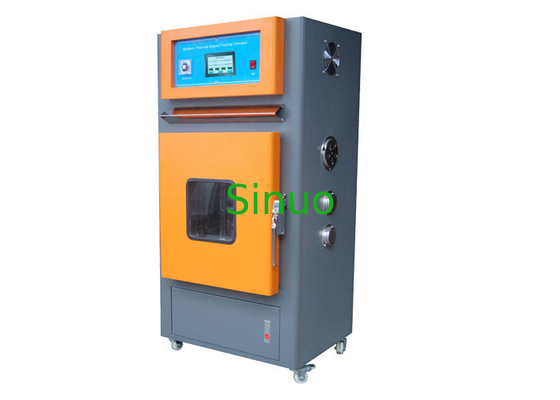

200℃ Air Circulating Oven Battery Testing Equipment Battery Case Stress Thermal Impact Test

IEC62133 Battery Case Stress Thermal Impact Testing Equipment 200℃ Air Circulating Oven

Overview:

The battery thermal impact test equipment, also called the battery thermal abuse test chamber, adopts a hot air circulation system by simulating a battery placed in a forced-air high temperature chamber, raising the temperature to a preset test temperature and maintaining a certain time at a certain heating rate. It can ensure even distribution of working temperature.

Standards Compliant:

It is conforming to standard of IEC62133:2017 clause 7.2.3, 7.3.5, IEC62133:2012 clause 7.3.5, 8.2.2, 8.3.4, IEC61960, IEC60086-4 clause 6.5.7, IEC 60086-1 etc.

Technical Parameters:

Temperature range	Ambient temperature～200℃ (controllable)
Control Accuracy	±0.5℃
Distribute Temp.	±2.0℃(non-load)
Temperature rising rate	5℃±2℃/minute (RT～150℃)
Control Method	PLC Touch Screen Control
Working room dimension	W600mm×D500mm×H600mm
External Dimension	W940X D780 X H1620mm
Inner Chamber Material	Stainless steel, clean and smooth internal chamber, easy for cleaning, with high corrosion resistance performance. All internal material with environment friendly material, inter barrel with no trace argon arc welding
External Chamber Material	Steel plate, powder painted (thickness1.5mm)
Bottom	Installed with casters
Observation Window	Toughened glass with bursting disk.
Insulation Material	High density glass wool, well insulation, best ensure the temperature insulation. With high temperature resistant silicon seal, long time bear high temperature above 300 degrees.
Power Source	AC 220V ±10%,50HZ or 110V, 60Hz (can be customized)
Heating Power	About 3KW
Touch Screen Monitoring Picture

Air Supply System:

1. Forced Air Conveying circulation design. The air source generated by circulation motor driving the wheel and force the air pass through the heater to convey the hot air into the drying chamber while the used air can be inhaled to the air channel as the air source and be heated again. This way is taken to reduce the energy loss and assure the temperature in uniform distribution in the chamber. If any disturbance of door open or close, this air conveying and circulation system can recover the operational temperature value in a short time.

2. Long axis high temperature resistant motor, power 1HP50Hz

3. Blower with multi impeller turbo type, high strength, inner installed with adjustable air flow plate, make the air channel smoothly.
