Electric Vehicle Connectors Temperature Rise Test System

Vehicle Testing Equipment
January 20, 2026
Category Connection: Vehicle Testing Equipment
Chat Now Contact Us
Tags:
#automotive test equipment #car test equipment #automobile testing equipment
Brief: Step into our short showcase to explore the IEC 62196-3: 2022 Electric Vehicle Connectors Temperature Rise Test System's standout capabilities. In this video, you'll see a detailed demonstration of how the system performs temperature rise tests on EV charging connectors, ensuring compliance with international standards. Watch as we explain the equipment's operation, from stable current output to real-time temperature monitoring and data recording, providing you with clear insights into its testing accuracy and reliability for B2B quality assurance.
Related Product Features:
  • Complies with IEC 62196-3:2022, IEC 62196-1:2022, and IEC 60309-1:2012 standards for temperature rise testing of EV connectors.
  • Features a PLC programmable controller and touch screen for easy operation and real-time display of current and temperature values.
  • Stably outputs adjustable AC current from 0-100A, eliminating fluctuations from power supply or sample resistance.
  • Supports both continuous and intermittent test modes with customizable timing and cycle settings.
  • Monitors up to 16 temperature channels with high accuracy (0.3% reading +1°C) and rapid scanning.
  • Automatically records temperature data every 2 seconds and generates reports stored via USB for analysis.
  • Includes Omega T-type thermocouples for precise temperature measurement across test points.
  • Compact and movable design with dimensions of approximately 800x680x1610mm for flexible lab use.
FAQs:
  • What standards does this temperature rise test system comply with?
    The system meets IEC 62196-3:2022 clause 24, IEC 62196-1:2022 clauses 24, 34.2, 34.4, and 35.4, and IEC 60309-1:2012 clause 22, ensuring it is suitable for testing EV charging connectors according to international requirements.
  • How does the system ensure accurate test results?
    It uses a voltage regulator, current transducer, and PLC controller to stably output test current, minimizing influences from power supply fluctuations, wiring, or sample resistance, thereby enhancing testing accuracy and reliability.
  • Can the test data be exported and analyzed?
    Yes, the system records temperature data every 2 seconds, stores it on a USB flash drive, and allows for easy transfer to a computer for viewing, printing, and further analysis of test reports.
  • What are the key technical parameters for temperature measurement?
    It features 16 temperature channels with a range of 0-400°C, accuracy of 0.3% reading +1°C, resolution of 0.1°C, and uses Omega T-type thermocouples for precise and reliable measurements.
Related Videos

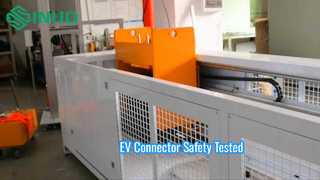

UL 2594 Drive Over Tire Load Test System for EV Charging Connectors with PLC Control 00:29
