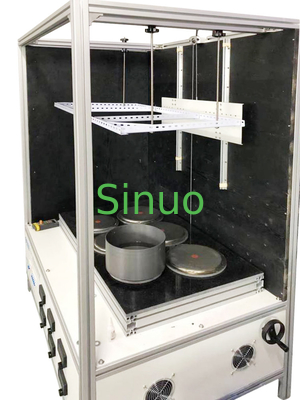

IEC60335-2-21 Heating Performance Testing Machine For Range Hood
Standards for Range Hoods Heating Performance Test Equipment:
This heating furnace test system has been designed and manufactured according to the requirements of Chapter 11 and Figure 101 of the IEC 60335-2-21 standard.
Structure for Range Hoods Heating Performance Test Equipment:
The test angle simulates the temperature rise environment, and is compatible with lampblack machine test and gas stove test.
Technical Parameters for Range Hoods Heating Performance Test Equipment:
|
Working power |
220V, 50Hz, equipment power is about 10500W |
|
Electric heating power |
A total of 6 burners, of which the last three input power 2KW, the first three input power 1.5KW (German EGO burners, small power error, long service life). |
|
Panel size |
The left panel is about 800 * 1200mm, the cloth 9 * 6 = 54 temperature points, the rear panel is about 1200 * 1200mm, the cloth 9 * 9 = 81 temperature points, the dot cloth is 100 * 100mm square. |
|
Brass sheet for temperature measurement |
Diameter 15mm, thickness 1mm. |
|
Thermocouple wire |
Diameter less than 0.3 mm, type k OMEGA original thermocouple wire is uniformly connected to the terminal row. |
|
Dimensions |
About 1200*800*2000 (length*width*height mm) |
|
Accessories |
Equipped with 6 vessels of the same or similar size as the furnace, plus 20 thermocouple leads of 4 m length. |
Come with gas stove test pot and cover.
|
Measured heat load /kW |
Size of pot /mm |
heating water /kg |
|||||||
|
Pot inner diameter φA |
Bottom thickness C |
Pot wall thickness D |
pot depth H |
corner radius E |
Bottom area /cm2 |
pot quality /g |
Lid quality /g |
||
|
＜1.72 |
200 |
2 |
1.5 |
130 |
2.5 |
314 |
540 |
125 |
3 |
|
2.08 |
220 |
140 |
3 |
380 |
680 |
149 |
4 |
||
|
2.48 |
240 |
150 |
3.5 |
452 |
800 |
177 |
5 |
||
|
2.91 |
260 |
2.5 |
1.8 |
160 |
531 |
965 |
208 |
6 |
|
|
3.36 |
280 |
170 |
615 |
1130 |
290 |
8 |
|||
|
3.86 |
300 |
180 |
707 |
1350 |
323 |
10 |
|||
|
4.40 |
320 |
190 |
804 |
1520 |
360 |
12 |
|||
|
4.95～ |
340 |
200 |
4 |
907 |
1800 |
402 |
14 |
||
|
Tolerance |
±1% |
±0.1 |
±0.1 |
±1% |
0～0.5 |
|
±5% |
±5% |
|
|
|
