|Applied Standard:||IEC60695-11-20 & IEC60695-11-4||Burning Time:||0-9999X0.1S,it Can Be Preseted|
|Residual Flame/residual Burning Time:||0-9999X0.1S,it Can Be Displayed||Flame Height:||50w: 20±2mm 500w: 40±2mm|
|Control Mode:||Touch Screen||Heating Time:||50w: 44±2S 500w: 54±2S|
IEC 60695-11-20 Combustion Flammability Tester,
PLC Combustion Flammability Tester

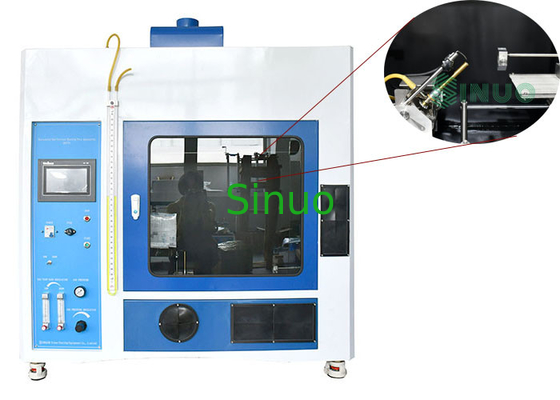

IEC60695-11-20 Horizontal & vertical combustion Flammability tester
Horizontal vertical combustion tester conforms to the standard of IEC60695-11-10, IEC60695-11-20 and IEC60695-11-4.
This equipment is used to simulate the early stage flame influence in the event of fire around electrical and electronic products, so as to assess the fire hazard degree by simulation technology. It is mainly used for horizontal and vertical flammability test of relative combustion characteristics of plastic and other non-metallic material parts samples, solid materials and foam plastics whose density is not less than 250kg/m' according to the method of ISO845.
This series of products adopt integral intake automatic ignition system, the combustion delay is only 0.1 seconds, to ensure the full combustion of gas; Adopt steel structure box, the inner box is black matte light background, large observation window, imported high precision digital display instrument, accurate detection.
Controlled by touch screen, the test is accurate and efficient.
|Operation||Touch screen operation, with infrared remote control|
|Display||7 inch color touch screen|
|Torch standard||Iec60695-11-3 /IEC60695-11-4/10,UL94, inner diameter φ 9.5±0.3mm, length 100mm, made of brass|
|Gas flow||50W: 105±5ml/min or 18±1 mm; 500W: 965±30ml/min or 117±3 mm, flow meter adjustment|
|U-shaped pressure gauge back pressure water column height||50W: 10mm; 500W: 125±5 mm|
|Test angle||50W: 0°,45°; 500W: 20°|
|Burning time||0-9999X0.1S can be preset|
|Number of burns||0-9999 times, can be preset|
|After flame/after burning time||0-9999X0.1S can be displayed|
