IEC60335-2 Current-Carrying Hoses Bending Resistance Tester 5 Station
  • name
  • name
  • name
  • name

IEC60335-2 Current-Carrying Hoses Bending Resistance Tester 5 Station

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 20 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(Cost Additional )
Model Number
SN1704-5
Test Stations:
5 Stations
Test Speed:
10 R/min, Presettable, Accuracy ±1 R/min
Bending Angle:
40°±1°
Load Weights:
5 Pieces Each Of 2.5kg And 5kg
Arm Length:
300mm±50mm
Test Count:
0-999999 Times
Product Description



IEC60335-2 Current-Carrying Hoses Bending Resistance Tester 5 Station





Product information:



This device meets the standard of IEC60335-2-2 clause 21.103, IEC 60312 clause 6.9, suitable for the Current-carrying hoses bending resistance tester. Compliance is checked by the following test.

The end of the hose intended to be connected to the motorized cleaning head is attached to the pivoting arm of the test equipment shown in Figure 17. The distance between the pivot axis of the arm and the point where the hose enters the rigid part is 300 mm ± 50 mm. The arm can be raised from the horizontal position by an angle of 40°±1°. A mass of 5 kg is suspended from the other end of the hose or from a convenient point along the hose so that when the arm is in the horizontal position the mass supported and there is no tension on the hose.



Test Samples and Limitations:



Vacuum cleaner hoses,Water-suction cleaning appliance hoses,Washing machine water hoses.

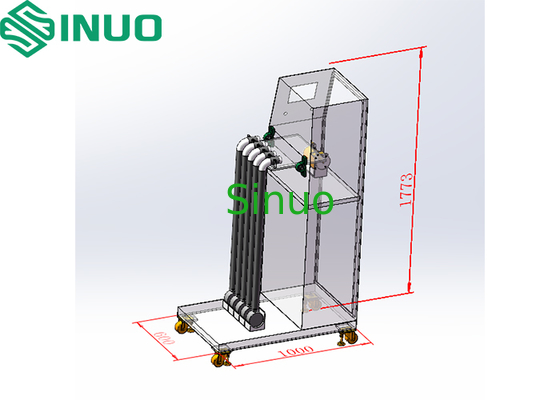

Equipment Structure:



IEC60335-2 Current-Carrying Hoses Bending Resistance Tester 5 Station 0



Technical parameters:



Operating Environment

Power supply: AC220V±10% / 50-60Hz

Operating temperature: 0-40℃

Humidity: 30%-90%
Test stations 5 stations
Electrical control method PLC intelligent control, touchscreen operation
Drive method Motor-driven
Test speed 10 r/min, presettable, accuracy ±1 r/min
Bending angle 40°±1°
Load weights 5 pieces each of 2.5kg and 5kg
Arm length 300mm±50mm
Test count 0-999999 times, presettable, default 10000 times
Metal slope Max hose deflection angle 3° during weight sliding, slope angle 3°±1°
Equipment size approximately 700×500×1150 (mm) (W×H×D)
Equipment weight 100kg




Testing Principle:



Uses PLC control and touchscreen operation.Controls the motor to drive the eccentric wheel mechanism to lift the mechanical arm (up to 40°±1°).Test count and speed can be preset,the machine stops automatically upon reaching the preset count.

Fix the end of the current-carrying flexible hose intended to connect to the power-cleaning head to the pivot arm of the device (distance to rigid part: 300±50mm).Hang a 5kg weight on the other end of the hose (the weight can slide along the weight slide plate).The pivot arm lifts from horizontal to 40°±1°, repeats 2500 cycles.Rotate the hose end by 90° and repeat the above test for another 2500 cycles.After completion, perform an electrical strength test on the sample.

IEC60335-2 Current-Carrying Hoses Bending Resistance Tester 5 Station 1
