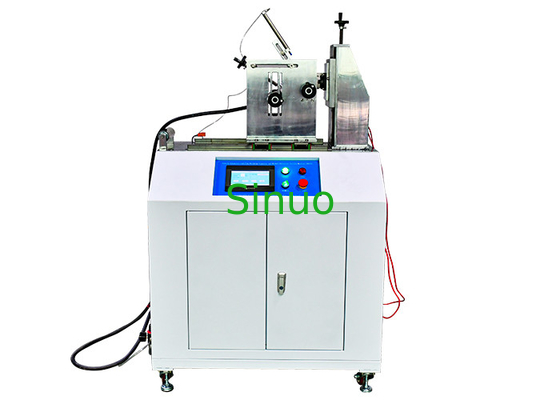

IEC62196-1 Electric Vehicle Socket Breaking Capacity Test Device With PLC Display Screen
System Introduction:
The test equipment meets the requirements of articles 22 and 23 of IEC62196-1: 2020, 20 and 21 of IEC60309-1: 2012.
Used to verify that electrical accessories such as charging interfaces, industrial plugs, sockets and couplers can withstand mechanical, electrical and thermal stresses during normal operation without excessive wear or other harmful effects.
Servo motor drive mechanism, so that the sample repeated plug and pull action. External loads can be used to test the fracture capacity. Boot / shutdown time, test speed, stroke, angle can be preset on the touch screen.
Technical Parameters:
|
Mechanical Endurance Test Machine |
|
|
Test Station |
Single, can be customized |
|
Electrical Control Method |
PLC intelligent integrated control, with color humanized touch screen |
|
Drive Mode |
Servo motor drive |
|
Sample Clamping Method |
Mechanical clamping, clamping point position can be adjusted along the three axis fixture |
|
Linear Stroke |
0-100mm, can be preset (the spacing between test plug and test socket≥ 50mm) |
|
Conduction Time |
0-99.9s, can be preset (electrical contact should be maintained no more than 4s, no less than 2s) |
|
Speed of Insertion and Separation |
0-0.85m/s can be preset,default(0.8±0.1)m/s |
|
Test Cycles |
0 ~ 999999 cycles can be preset (one trip is the insertion or withdrawal of the plug or vehicle connector and its matching accessories). A loop consists of two strokes, one for insertion and one for exit. |
|
Test Frequency |
0-10 cycles/min,can be preset(3.75cycles/min=7.5 stoke/min) |
|
Load Cabinet |
|
|
Channel |
1 Channel |
|
Digital voltmeter |
0～300V, accuracy ±0.5% |
|
Digital ammeter |
0～82A, accuracy ±0.5% |
|
Digital display power meter |
0～24KW, accuracy ±0.5% |
|
Digital display power factor meter |
0.2～0.999, accuracy ±0.5% |
|
Load mode |
Resistive, inductive, capacitive three in one, switchable |
|
Capacitive load |
70uf, 140uf, 7.3uf can be switchable |
|
Load output mode |
Each power (continuous) / interval power can be switchable |
|
Timer |
0～9999 times, can be preset |
|
Load power capacity |
Single 24KVA |
|
Upper limit of output current |
82A, when it exceeds 82a, it will cut off automatically |
|
General |
|
|
Test Contents |
Breaking Capacity Test of Electrical Coupler / Charging Interface Electrical coupler / charging interface normal service life test |
|
Detection Function |
An open circuit alarm can be realized during testing under load, and the cycles can be recorded real in time. |
|
Safety Protection |
Ground protection, short circuit protection |
|
|
