| MOQ: | 1 Set |
| Price: | Negotiable |
| Standard Packaging: | Plywood Case |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 10 Sets / Month |

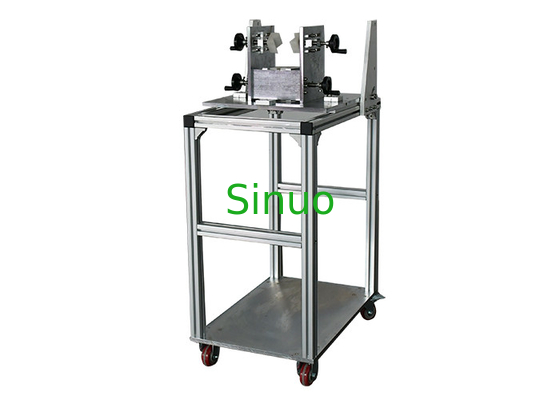

Vehicle Switch-Outlet Interlock Withdrawal Force Test Apparatus IEC 62196-1
Product InformationN For Vehicle Switch-Outlet Interlock Withdrawal Force Test Apparatus:
This test equipment conforms to IEC 62196-1:2020 clause 14.1.5, 14.1.6, fig13, fig14. It is used to check the maximum force required when the test plug is withdrawn from the socket-outlet or vehicle connector. It is also used to verify the design of latching device holding the plug in the socket-outlet or vehicle connector shall remain in latched position during use.
Maximum Withdrawal Force Test For Vehicle Switch-Outlet Interlock Withdrawal Force Test Apparatus:
The maximum withdrawal force of the socket-outlet shall meet the requirements of Table 1.
Apply the maximum withdrawal force specified in the standard (total force of the principal weight, supplementary weight, hook (clamping device) to the test plug, when the supplementary weight is dropped from a height of 50mm, the plug should come out of the socket.
User should select an appropriate weight for the test according to the following table:
Table 1
|
Sample type (AC A) |
Withdrawal N |
Principal weight N |
Supplementary weight N |
| 6-40 | 165 | 148.5 | 16.5 |
| 41-80 | 300 | 270 | 30 |
| 81-150 | 440 | 396 | 44 |
| 151-250 | 660 | 396+148.5+49.5 | 66 |
|
Sample type (DC A) |
|||
| Any | 750 | 396+148.5+49.5+15 | 75 |
| Clause 17.2 A | |||
| <59 | 150 | 135 | 15 |
| 60-99 | 275 | 247.5 | 27.5 |
| 100-125 | 400 | 270+90 | 40 |
| Note: The principal weight already contains the test plug and hook weight | |||
Minimum Withdrawal Force For Vehicle Switch-Outlet Interlock Withdrawal Force Test Apparatus:
Insert the gauge with the minimum withdrawal force specified in the standard (that is, the test pin (single pin) that meets the requirements of this standard, the total mass of the pin should be equal to the value specified in the table) into each individual socket in the socket-outlet. The gauge must not be removed from the socket within 30 seconds.
Table 2
|
Nominal pin diameter mm |
Diameter of gauge mm +0 -0.01 |
Minimum total force N |
| 5 | 4.80 | 2.5 |
| 6 | 5.80 | 5 |
| 7 | 6.80 | 5 |
| 8 | 7.80 | 10 |
| 10 | 9.80 | 15 |
| 12 | 11.80 | 20 |
| Note: The minimum withdrawal force already includes the weight of the gauge | ||
Verification Of The Latching Device For Vehicle Switch-Outlet Interlock Withdrawal Force Test Apparatus:
The switched socket-outlet or vehicle connector with interlock is fixed to the support of an apparatus so that the axis of separation is horizontal. With the latching devices holding the plug into the socket-outlet or vehicle connector in the engaged position, an axial pull is applied to the cable attached at an appropriate plug inserted in the switched socket-outlet or vehicle connector with interlock.
|
|
