| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 8 per month |

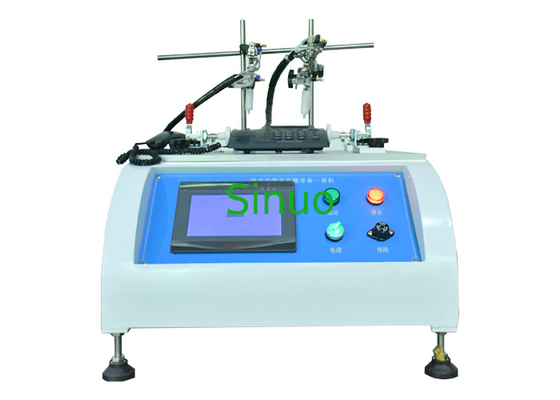

Fixed-Line Fork Spring And Bottom Life Integrated Machine Touch Screen
1. Product overview
The equipment is designed and manufactured in accordance with the requirements of 5.14.1 and 5.14.2 of the standard GB/T15279-2002. It is used to verify the life of the hook spring and the life of the button. It is a comprehensive durability testing machine.
The equipment adopts PLC control, 7-inch touch screen operation, and cylinder drive. You can set the number of tests, adjust the test stroke, preset the test rate, the test will proceed automatically, and it will automatically stop when the preset number is reached.
2. Main technical parameters
1. Input power: AC220V50Hz
2. Control and operation: PLC control, 7-inch color touch screen operation
3. Drive: cylinder drive, 3 independent cylinders
4. Compression rate: 0-60 times/min adjustable
5. Number of presses: 0-999999 times, can be preset
6. Test items:Life of hook spring/Bottom
7. Specimen fixture: two sets, one set of hook spring and one set of key life, independent
8. Equipment dimensions and weight: 700*400*500mm, 80kg
9. Load: external
10. Judgment of test results: After the test is completed, the customer will judge according to the standard according to the validity of the sample
Main Prameters:
| Operation & Control | PLC control, 7" color touch screen operation |
| Test Items | Life of hook spring/Bottom |
| Measuring range (metric/imperial): | 700*400*500mm,80kg |
| Compression rate: | 0-60 times/min adjustable |
| Number of presses | 0-999999 times, adjustable |
| Units: | Metric/Imperial unit selectable |
| Power supply: | AC220V50Hz |
| Standard : | 5.14.1 and 5.14.2 of the standard GB/T15279-2002 |
3. test principle
Hook spring life test:
Use the air cylinder to carry out the reciprocating pressing test of the fork spring. The pressing stroke is pre-adjusted so that the fork spring is kept on when pressed, and the fork spring is automatically stopped when the number of pressing times is reached.
Button life test:
Use two cylinders to perform a reciprocating pressing test on two optional buttons of the fixed phone. The pressing stroke and position are pre-adjusted so that the button keeps sending out the signal when the button is pressed, and it stops automatically when the number of pressings is reached.
|
|
