IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System Computer Operation

IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System Computer Operation

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 60 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 1 set per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1125-2.5MPA
Standard Applied:
IEC 60335-2-21, Etc.
Test Station:
1 Station
Hydraulic Pressure:
0.1-2.5MPa
Boost Rate:
0.13MPa/s
Peak Record:
Air Pressure
Test Medium:
Clean Water
Water Temperature Range:
10-60℃
Water Tank Volume:
>10L
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
60 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
1 set per month
High Light:

2.5Mpa Hydrostatic Pressure Test System

,

IEC 60335-2-21 Hydrostatic Pressure Test System

Product Description



IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System for Water Heaters



Product overview:

This hydraulic pressure test apparatus is required by IEC 60335-2-5 cl.22.101,IEC 60335-2-7 cl.22.101 , IEC 60335-2-21/35 22.47 & 22.103 , IEC 60335-2-24 cl.22.7, etc.

It is used for various pressure-bearing products such as valves, water heaters, treated fabrics, etc. to carry out water pressure resistance, static pressure, blasting performance test and water sealing performance test.



System Features:

The test system adopts touch computer control, can print data and display pressure curve , can set test pressure, constant pressure time, pressure rise rate, etc.; adopts pneumatic water pressure booster pump and its pressure control device with stable performance, which is convenient for operation.



Technical Parameters:

No.: Contents Parameters
1 Power supply Single phase AC 220V or 120V, 50-60Hz
3 Operation interface Touch type computer
4 Pressurized mode Air pressure
5 Test pressure 0.1-2.5MPa
6 Hydraulic pressure control accuracy ±0.05MPa
7 Boost rate Can be controlled to be 0.13MPa/s
8 Water temperature 10-60℃ controllable (accuracy ±1℃)
9 Constant temperature water tank volume ≥10L
10 Pressure apply or hold time 0-999999s can be set
11 Use environment

Atmospheric pressure 80~106kpa; ambient temperature 5~40°C; relative humidity (20~80)%RH;

Use place: no rotation, no vibration, no electromagnetic interference, no dust, no explosive and no corrosive gas, with good heat dissipation

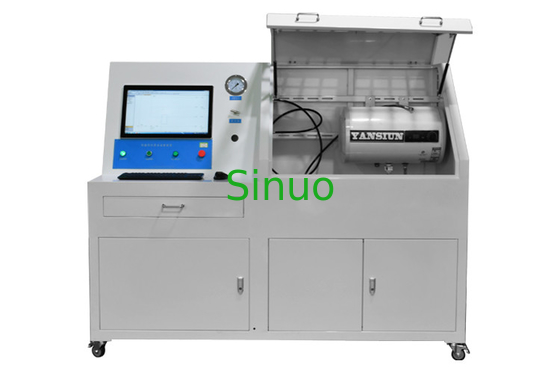

IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System Computer Operation 0
