| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood Case |
| Delivery Period: | 20 Days |
| Payment Method: | T/T |
| Supply Capacity: | 20 sets per month |

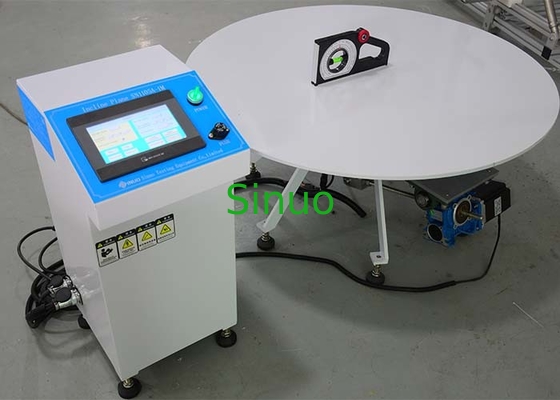

IEC 60950 Inclined Plane Ф1000mm With PLC Control For Mechanical Stability Test
Product information:
This device complies with the standards of IEC60335-1 Clause 20.1, IEC 60950: 2013 clause 4.1, IEC 60065:2014 clause 19.1, etc. The test bench consists of a work surface and an angle adjustment device, is suitable for all types of audio and video products, home appliances, kitchen equipments and similar electrical appliances doing mechanical stability test. The test sample was placed on the table to test its mechanical stability performance by different angle inclined.
Features:
The inclined plane test is a mechanical test used to evaluate the stability and resistance to tipping over of electrical equipment. It is commonly performed on products such as electronic devices, appliances, and equipment to ensure their safe operation and prevent accidental tipping.
During the inclined plane test, the equipment is placed on an inclined surface, typically a ramp or an inclined plane, and subjected to a specific angle of inclination. The angle of inclination can vary depending on the applicable standard or specific requirements.
The purpose of this test is to assess the stability of the equipment when subjected to external forces, such as an applied horizontal force or vibration. The test evaluates the tipping angle or tipping threshold at which the equipment becomes unstable and may tip over.
The test procedure typically involves gradually increasing the angle of inclination until the equipment reaches its tipping point. The equipment is considered to have passed the test if it remains stable and does not tip over under the specified conditions.
The inclined plane test is significant for ensuring the safety of electrical equipment, especially in environments where there is a risk of accidental tipping, such as in households or workplaces. It helps identify design flaws or weaknesses that could lead to equipment instability and potential hazards.
The standard does include various other mechanical tests and safety requirements for information technology equipment. These tests evaluate factors such as mechanical strength, stability, and resistance to external forces and impacts to ensure the safe use of the equipment.
Technical parameters:
| Test Station | Single |
| Electrical Control Method | PLC+Touch screen control |
| Drive Mode | Motor driven |
| Countertop Diameter | Ф1000mm |
| Countertop Material | High quality sprayed steel plate |
| Angle Adjustment Range | 0-30°, electrical control, automatically achieved |
| Rotation Mode | Electrical control, automatically 1r/min |
| Bearing Capacity | 100kg |
Application:
It simulates a surface such as the floor or table, on where the appliances intended to be used, shall have adequate stability.
Test Principle:
The appliance, not connected to the supply mains, is placed in any normal position of use on the inclined plane at a certain angle to the horizontal. The countertop of the inclined plane is rotated by rotating mechanism, so as to verify the sample’s stability.
Structure:
The device consists of a countertop and an angle adjustment device
Equipment dimensions: approx.: 1000 × 1000 × 800 (mm) W × D × H
Equipment weight: 150kg
|
|
