IPX8 Pressure Water Tightness Test System IEC 60529 For Testing Waterproof Capabilities
Product introduction:
The high pressure water tank is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under continuous immersion in water at degree IPX8 as per IEC 60529:2013.
The water tank is made of stainless steel, the equipment is controlled by PLC, test parameters can be set on the touch screen directly, water supply and pressure are achieved automatically.

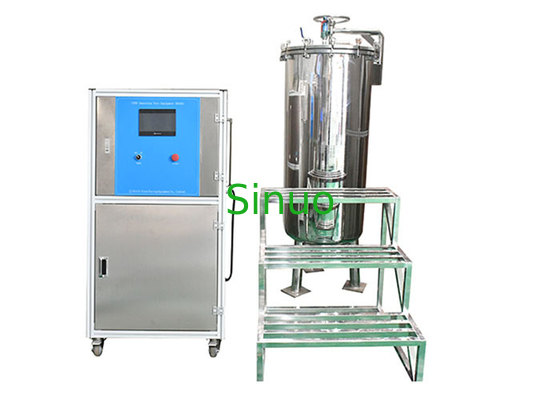

This complete set of equipment consists of a comprehensive control cabinet, IPX8 pressure vessel, and a stainless steel stair. The intelligent water supply and control system consists of a water supply tank, a water supply system, and a control system. The test water supply flow is controlled by PLC, frequency converter, and sensors.
Features:
IPX8 water ingress testing equipment is a specialized apparatus used to assess the water resistance and waterproof capabilities of electronic devices, components, or enclosures. The IPX8 rating is part of the International Electrotechnical Commission (IEC) standard 60529, which classifies and rates the degree of protection provided by enclosures against the ingress of solid objects and liquids. IPX8 specifically addresses the device's ability to withstand continuous immersion in water under specified conditions. Here are the key features and functions typically associated with IPX8 water ingress testing equipment:
Immersion Tank: The equipment includes an immersion tank or chamber that can accommodate the test specimen. The tank is designed to hold water at a specific depth and allow complete immersion of the device or enclosure being tested.
Water Supply System: The equipment incorporates a water supply system to fill the immersion tank and maintain a stable water level during the testing process. The water supply system may include pumps, valves, and flow control mechanisms to ensure a consistent and controlled flow of water.
Water Temperature Control: IPX8 water ingress testing often requires the water to be maintained at a specific temperature. The equipment may include a temperature control system to heat or cool the water and maintain it within the desired temperature range during testing.
Test Duration Control: The equipment provides control over the duration of the immersion test. The test duration is typically specified in the relevant standards or testing protocols, and the equipment allows for precise timing and automation of the test process.
Depth Measurement: IPX8 testing requires the water to reach a specific depth during immersion. The equipment may include depth measurement sensors or indicators to ensure that the water level meets the required depth for accurate testing.
Visual Inspection: After the immersion test, IPX8 water ingress testing often involves a visual inspection of the test specimen. The equipment may include transparent observation windows or access ports to allow for visual examination without compromising the integrity of the test environment.
Compliance with Standards: IPX8 water ingress testing equipment is designed to comply with the relevant standards, such as IEC 60529. Compliance ensures that the testing process is conducted according to established guidelines and provides reliable and comparable results.
IPX8 water ingress testing equipment is commonly used in industries such as consumer electronics, automotive, marine, and outdoor equipment manufacturing. It allows manufacturers to assess the durability and waterproof performance of their products, ensuring they meet the required standards and can withstand prolonged immersion in water without compromising functionality or safety.
Technical Parameters:
| Item | Specifications |
| Equipment power supply | AC380V 50HZ 35KW. |
| Sample placement | Use electric hoist gantry hanger to lift, carrying 50KG. |
| Opening the cover | The screw rod is lifted and moved laterally, and it can be fully opened, which is convenient for placing samples. |
| Double pressure protection | (1) mechanical protection: spring-type safety relief valve; (2) program control: the pressure exceeds the upper limit value of the water pump to stop working and immediately release the pressure. |
| Safety valve protects ultimate pressure | 0.55 MPa. |
| Test time | 0-99H99M99S can be set. |
| The principle of pressurization method | Ｗater pressure pressurization, PLC program control, the current value of pressure is collected from time to time through PLC, the frequency converter controls the pump speed and frequency to pressurize, and the pressure is constant. |
| Water temperature control | 5～30℃ can be controlled, the heating adopts stainless steel heating tube, and the cooling adopts 10HP chiller. |
| Allowable samples with max. dimensions | 500 X 500 X 500 mm |
| Pressurized container | SUS304 stainless steel tank, the diameter of the tank body is 800mm, and the height of the tank body is 1000mm. |
| Stair | Stainless steel stair |
Working environment:
| Use site | The ground is flat, the drainage is smooth, the floor and wall are waterproofed, and a floor drain or drainage ditch is installed Ground load capacity is not less than 300kg / m2 Field is well ventilated No strong vibration around the equipment No flammable, explosive, corrosive substances and dust around the equipment Appropriate use and maintenance space is left around the equipment: Back, left, right, top of the device: 600mm; front of the device: 1000mm |
| Environment conditions |
Temperature:5℃～35℃ Relative humidity:≤85% Air pressure:86kPa～106kPa |
| Power supply | AC 380V, 50Hz, must have nature wire |
| Water supply | Tap water / pure water |
| Gas source | User should prepare the air compressor, the recommended output air pressure: 0.6Mpa—0.8Mpa. |
