| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Standard Exporting Plywood Case |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10 Sets Per Month |

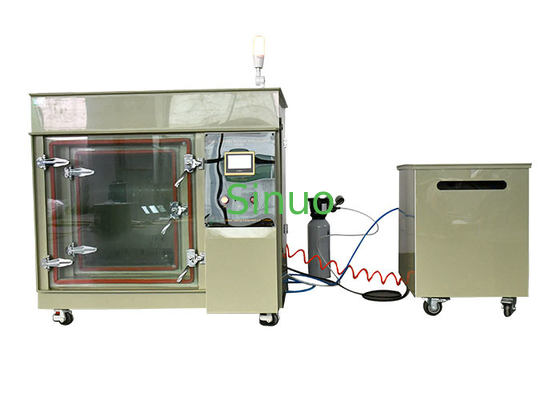

IEC 62368-1 Cylinder Method Sulphur Dioxide Atmosphere Test Chamber
Product information:
The SO2 atmospheric chamber complies with the requirements of IEC 62368-1: 2018 and ISO 3231.
The equipment is used to test the corrosion resistance of samples and their protective layers. The test effect can be achieved through environment simulation. It can also be used to evaluate the corrosion resistance of certain products.
Main features:
The equipment uses sulfur dioxide corrosive gas to accelerate the corrosion of materials or products at a certain temperature and relative humidity, and reproduces the damage degree of materials or products within a certain period of time. The equipment is used to test the corrosion resistance of samples and their protective layers. Through the environment simulation to achieve the test effect. It can also be used to evaluate the corrosion resistance of certain products.
The equipment can reach and maintain the constant temperature and humidity point specified in the test work area. The specific concentration of sulfur dioxide gas is introduced into a designated capacity chamber, and the corrosion test is performed on the material or product under the conditions of constant concentration, temperature and relative humidity. The box is made of corrosion-resistant PP board, does not react with sulfur dioxide gas, does not absorb sulfur dioxide gas, does not affect the test results. When the test chamber is working, the internal and external pressures are balanced.
Technical parameters:
|
1 |
Inner chamber size |
500×500×600 (D*W*H) |
|
2 |
Inner chamber volume |
150L |
|
3 |
Temperature range |
RT＋10℃～50℃ |
|
4 |
Relative humidity |
≥95%R.H |
|
5 |
Temperature fluctuation |
≤±0.5℃ |
|
6 |
Temperature uniformity |
≤±2℃ |
|
7 |
Temperature deviation |
≤±1.5℃ |
|
8 |
Gas generation method |
Cylinder method |
|
9 |
Sulphur oxide gas concentration |
0.1～1% (volume percentage) |
|
10 |
Gas supply purity |
99.9% (gas should be prepared by user) |
|
11 |
Time setting range |
0～9999 M, H |
|
|
