| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10 Sets Per Month |

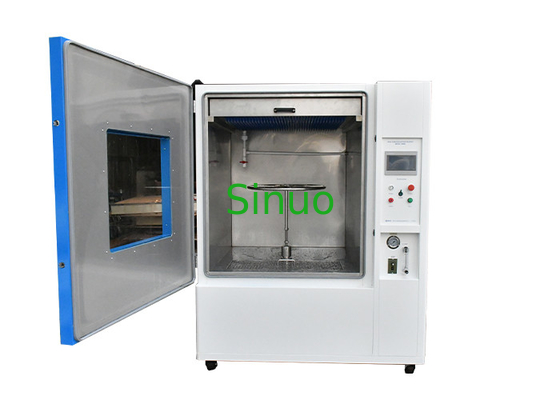

IEC 60529 2013 IPX1 IPX2 100L Stainless Steel Plate Waterproof Test Chamber
Product Information For Waterproof Test Chamber:
The equipment is designed and manufactured according to IEC 60529: 2013 IPX1 and IPX2 requirements. Used to test the physical and other related properties of electrical and electronic products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated climatic conditions. After the test, determine whether the performance of the product meets the requirements, so as to facilitate product design, improvement, verification and factory inspection.
Equipment features For Waterproof Test Chamber:
1. Suitable for IPX1, IPX2 classification of waterproof test.
2. The shell is made of plastic-sprayed steel plate, beautiful and durable.
3. Dripping plate, inner cavity, turntable and other wading parts are made of SUS304 stainless steel to ensure long-term use without rust.
4. Drip box adopts vacuum design, high rust stainless steel structure; Nozzle base and needle can be separated, convenient needle installation and replacement.
5. The water supply pipe is equipped with a filter to filter impurities in the water and prevent clogging of the sprinklers.
6. With compressed air drying function, after the completion of the test, the excess water in the drip irrigation tank can be discharged to avoid scale blocking pinholes for a long time. (Note: the user needs to provide compressed air supply).
7. The turntable uses a decelerating motor, and the speed can be set on the touch screen to achieve the IPX1 test speed of 1 rpm, and the tilt device on the turntable can reach 15 ° for the IPX2 test.
Technical Parameters For Waterproof Test Chamber:
|
Model |
SN443-1000L |
|
Inner Chamber |
1000mm*1000mm*1000mm |
|
Outer Chamber |
Approx. 1500mm*1260mm*2000mm |
|
Outer Chamber Material |
Spray treatment, concise, beautiful and smooth |
|
Inner Chamber Material |
High quality stainless steel plate |
|
Weight |
Approx.300KG |
|
Turntable |
|
|
Rotating Speed |
1 ~5 rpm adjustable |
|
Turntable Diameter |
600mm |
|
Turntable Height |
Adjustable height: 200mm |
|
Turntable Bearing Capacity |
Max. 20KG |
|
Turntable Function |
IPX1 turntable parallel IPX2 can achieve 15° by adding the incline device on the turntable |
|
IPX1/2 Dripping |
|
|
Dripping Hole Diameter |
φ0.4 mm |
|
Dripping Aperture Spacing |
20 mm |
|
IPX1, IPX2 Dripping speed (water flow) |
1 +0.5 0mm/min(IPX1) 3 +0.5 0mm/min(IPX2) |
|
Dripping Area |
800X800 mm |
|
Distance between Drip Box and Sample |
200 mm |
|
Electrical Control |
|
|
Controller |
LCD touch controller |
|
Test Time |
1-999,999min (can be set) |
|
Turntable Control |
Reduced motor, speed is stable |
|
Oscillating Control |
Stepping motor, oscillating tube swings stable |
|
Flow and Pressure Control |
Use manual valve to control flow and pressure, glass rotameters to indicate flow, stainless steel case spring pressure gauge to indicate pressure |
|
Use Environment |
|
|
Ambient temperature |
RT10～35℃ (average temperature within 24H≤28℃) |
|
Environment humidity |
≤85%RH |
|
Power supply |
220V 50HZ single-phase three-wire + protection ground, protection ground contact resistance is less than 4 Ω; The user needs to configure the corresponding capacity of the air or power switch for the equipment at the installation site, which must be independent and dedicated for the use of the equipment. |
|
Power |
Approx. 3KW |
|
Protection System |
Leakage, short circuit, water shortage, motor overheating protection, alarm prompt |
