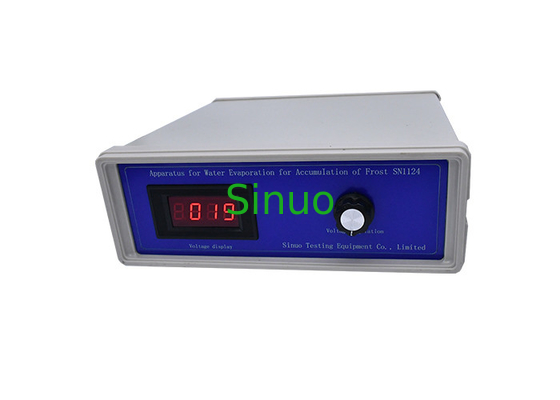

IEC60335-2-14 High Quality Testing Equipment Defrosting Test Apparatus SN1124
Product Information:
The apparatus for water evaporation for accumulation of frost is designed in accordance with IEC 60335-2-24 clause 11.102 and Annex BB (figure BB.1).
Samples and Restrictions:
Refrigerating appliances, such as refrigerators, ice-cream appliances and ice-makers.
Application:
It is used for water evaporation for accumulation of frost.
Technical Parameters:
|
Power Supply |
Match client's local power supply |
|
Enclosure Material |
PVC or Bakelite |
|
Thermal Plate Material |
Red copper plate |
|
Heat Source |
5W incandescent |
|
Output Voltage |
5-220V adjustable |
|
Display Method |
Digital Display |
|
Weighing Mode of Consumed Water |
Digital display electronic balance (should be prepared by user) |
|
Injection Modes |
manual injection |
Use Environment:
Safety warning
In the process of using this apparatus, operator must pay attention to the following safety regulations. If this regulation is not followed, the product function may be damaged and personal safety may be endangered.
Matters Needing Attention:
1 Properly adjust the voltage value within the range (20-220V).
2. Maintenance notice:
Make sure to cut off the power supply and unplug the power plug before performing routine maintenance of the instrument, such as cleaning or replacing the fuse. The internal cleaning and fault repair of the instrument must be performed by professionals. It is forbidden to open the case at ordinary times to avoid electric shock, burns and other accidents.
Notice:
Do not use this product in a corrosive environment
Do not use this product in places containing corrosive liquid or gas, otherwise it will cause damage to this product.
Do not operate in an explosive environment
Do not use this product where flammable and explosive materials are placed, otherwise it may endanger safety.
Ground protection
Before turning on the power, please ensure the product is well grounded, and avoid using the neutral wire as a protective ground wire.
Power supply
Before turning on the power, make sure that the voltage of the power supply matches the
Rated voltage.
The power supply should be AC220V±10%, 50/60Hz.
|
|
