| MOQ: | 1 Set |
| Price: | Negotiable |
| Standard Packaging: | Plywood Case |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 5 Sets / Month |

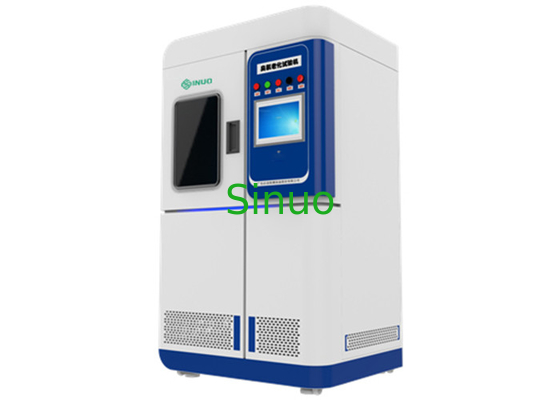

ISO 7326 Advanced Ozone Aging Static and Dynamic Strain Environmental Test Chamber
Product Information For Advanced Ozone Aging Static and Dynamic Strain Environmental Test Chamber:
This ozone aging tester complies with ISO 1431-1-2012 "Rubber, vulcanized rubber or thermoplastics - Resistance to ozone cracking - Part 1: Static and dynamic strain tests", as well as ISO 1431-1:2001, ISO 1431-2:1982, ISO 1431-1:2004, ISO 7326:2006, IDT, ISO 7326:1991 and ISO 1431-1-2012.
The ozone aging test is performed by placing the specimen in a closed, non-illuminated chamber with ozone-concentrated air, constant temperature and humidity for a predetermined period of time. The ozone aging resistance of the specimen is evaluated from the changes in properties such as cracks on the surface of the specimen. Ozone aging is divided into static tensile test and dynamic tensile test. In this test, ozone concentration, temperature and humidity, and specimen stretching are three very important parameters.
Technical Parameter For Premium Ozone Aging Static And Dynamic Strain Environmental Test Chamber:
Control system: self-developed special control system for ozone aging (using industrial-grade 10.2-inch touch computer);
Inner Size: 500*500*600mm (W*D*H);
Ozone Concentration Adjust Range: 0~400pphm;
Ozone concentration accuracy: better than 2% of the displayed value (imported ozone UV photometer), resolution is 0.01pphm;
Ozone Concentration Fluctuation: the Ozone PV value in the chamber is ≤±2PPHM;
Recover time of Ozone Concentration after sample installed: ≤20 minutes;
Temperature Adjust Range: 15℃~70℃;
Temperature Fluctuation: ≤±0.5℃；
Temperature Uniformity: ≤1.0℃；
Humidity Adjust Range: 35%~90%RH (25℃~65℃);
Humidity Deviation: ≤±5%.RH;
Humidity Uniformity: +3%. RH / -3%. RH;
Humidity Fluctuation: ≤±3%. RH;
Sample Holders Dumbbell-shaped rubber sample holders: 6 sets of static holders and 6 sets of dynamic holders; conforms to ISO 23529:2004;
Sample Platform:
Dynamic stretching speed: 0.5～1Hz (adjustable, set by the control system, automatic control);
The dynamic extension percentage: 1%～100% (adjustable, set by the control system, automatic control);
Accuracy of dynamic stretch percentage: ≤±0.5mm;
Tensile test mode: a, static tensile mode; b, dynamic tensile mode;
Speed of sample platform: 0～25mm/s (adjustable, set by the control system, automatic control);
Sample platform fixture stations: 24 positions;
Test conditions: 24 specimens are simultaneously subjected to static test or 6 specimens are simultaneously subjected to dynamic test;
The sample platform adopts a detachable design and is equipped with an interlayer net, which is convenient for customers to test special-shaped parts;
The flow rate of the gas in the chamber is parallel to the sample: flow rate ≥8mm/s±10%(adjustable);
Standard ozone pretreatment system;
Standard ozone post-processing system;
Ozone emission: adopt the design of no ozone leakage standard and ozone-free exhaust gas emission standard;
Data export: The data export format is EXCEL, which is convenient for users to process various types of data;
Use external USB interface to export test data (standard configuration);
RJ45 network port remote computer terminal to store test data (optional);
Total power consumption of equipment: AC380V is approximately 5.5KW, power supply mode: TN-S;
Equipment operating conditions:
Equipment working environment temperature is 0～35℃, relative humidity ≤85%RH;
Atmospheric pressure.
Features For Premium Ozone Aging Static And Dynamic Strain Environmental Test Chamber:
Self-developed ozone aging professional grade control software;
Adopting the U.S. imported ozone ultraviolet photometer, the accuracy is as high as 2%, and the accuracy of sampling data is stable for a long time;
Ozone concentration fluctuation: the Ozone PV value in the chamber is ≤±2PPHM;
The integrated control of ozone concentration, temperature and humidity is more in line with the test conditions;
The equipment electric control system realizes full digital operation control;
Equipped with 24 sample fixtures: 24 samples are simultaneously subjected to static testing or 6 samples are simultaneously subjected to dynamic testing;
The sample stage has a removable design and is equipped with a sandwich screen to facilitate customers to test special shaped parts;
Professional-grade ozone pretreatment system to protect the normal service life of core components and the normal use of other auxiliary systems;
Professional ozone post-treatment system, ozone concentration after treatment ≤ 2PPHM, in line with environmental requirements, no need to replace consumables;
Professional fixtures for sheet type and wire type samples, which meets the requirements of GB/T, ISO, IEC, ASTM;
Designed with ozone-free leakage and ozone-free emission standards to ensure personnel safety, compliance with testing standards and environmental standards, and environmental assessment;
Sample test results from this chamber can be compared with similar equipment in Germany and the UK.
|
|
