| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood Case |
| Delivery Period: | 30 Days |
| Payment Method: | T/T |
| Supply Capacity: | 10 Sets Per Month |

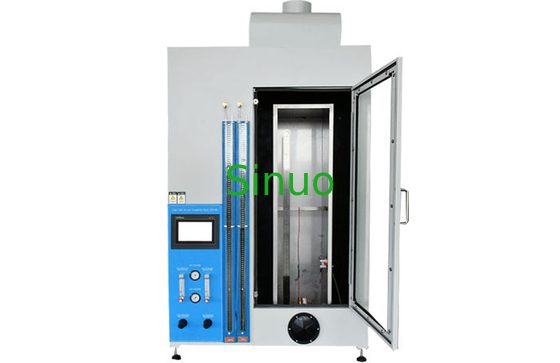

IEC60332-1-2 Single Insulated Wire Vertical Flammability Testing Equipment 1KW
Standars For Single Insulated Wire Vertical Flammability Testing Equipment:
IEC60332-1-1:2015 "Test on electric and optical fibre cables under fire conditions-Part1-1:Test for vertical flame propagation for single insulated wire and cable-Apparatus,IDT"
IEC60332-1-2:2015 "Test on electric and optical fibre cables under fire conditions-Part1-2:Test for vertical flame propagation for single insulated wire and cable-Procedure for 1Kw pre-mixed flame,IDT"
IEC60332-1-3:2015 "Test on electric and optical fibre cables under fire conditions-Part1-3:Test for vertical flame propagation for single insulated wire and cable-Procedure for determination of flame droplets/particles,IDT"
Equipment Features For Single Insulated Wire Vertical Flammability Testing Equipment:
① Fume hood: 1.5mm thick steel plate is formed by CNC laser cutting, the corners are inverted 45°, integral structure, good rigidity and sealing effect. The inner and outer boxes are made by electrostatic spraying, and the inner surface is sprayed with matte black paint. The effective volume of the inner box is 1m³, with a positionable and movable load-bearing supporting Fuma wheel. The left side is the operation control cabinet, and the right side is fully open. It is very convenient to replace and clean the receiving tray after opening. The door does not need to be opened during the test process, and the operation is performed through the reserved operation hole. The fume hood has a built-in strong exhaust fan, which is automatically closed during the test and automatically exhausted after the test. The operating height position is designed to be operated by a person sitting on a chair.
② Metal cover: 1.5mm thick stainless steel plate is formed by CNC laser cutting, and the front is open to ensure that the dimensional accuracy meets the standard requirements of 300×450×1200mm (better than the standard tolerance of ±25mm). The sample installation upper/lower bracket installed horizontally in the metal cover (the sample can be installed in the middle of the metal cover, that is, 150mm from both sides and 225mm from the back), and the scale ruler installed vertically. The right side of the metal cover is equipped with a temperature-measuring thermocouple and a temperature-measuring copper head, and the position switching between the temperature-measuring state and the non-temperature-measuring state can be realized through the swing structure. The bottom of the box is equipped with a pre-mixed blowtorch made according to the standard, with a movable guide rail mechanism, which can meet the requirements of the standard and then push it into the burning position after the flame is stable. There is a built-in receiving tray under the blowtorch mechanism, which can be pulled out for cleaning.
③ Control: Mitsubishi PLC intelligent control is adopted, the process can be controlled, and the test time parameters can be recorded and maintained.
④ Software and operation: Our company independently programs, and the process is completely in accordance with the requirements of customers and standards. View and operate through the 7-inch color touch screen interface. The software interface is divided into automatic, manual, alarm and parameter setting interfaces, which are simple and clear.
⑤ Gas circuit: Dual gas pipeline system is adopted, one for gas and one for air. Each channel is equipped with pressure regulator, flow meter, pressure gauge, U-shaped differential pressure gauge and solenoid valve, which can be accurately adjusted to the parameters required by the standard (mixing Gas: 0.1MPa, 650±10mL/min propane; 0.1MPa, 10±0.3L/min air,)
⑥ Test parameter record: The fire supply time can be preset and displayed, the process time of filter paper ignition and combustion stop is operated by manual key operation, touch screen records, temperature measurement system temperature and temperature rise time are collected by the system, and automatically recorded and displayed.
⑦ Use safety protection: Integral fume hood, exhaust fan with baffle, door sealing structure with rubber edge, double-layer rubber pad operation hole multi-layer structure can ensure that the smoke does not leak, and a smoke detector is installed on the back of the box body. Sound and light alarm if there is leakage. After the test is completed, the exhaust fan is automatically turned on, and the strong exhaust is turned on. The activated carbon bag is built in the outlet, which can greatly absorb toxic gases. The equipment is grounded and has leakage protection function.
Technical Parameters For Single Insulated Wire Vertical Flammability Testing Equipment:
| Working voltage | AC 220V/50Hz |
| Metal cover size | 300±2 mm W× 450mm±2 mm D×1200mm±2 mm H |
| Dimensions (mm) | 1250mm W× 700mm D×1800mm H |
| Workpiece to be inspected |
Small-sized single wire and cable with a total cross-sectional area of not less than 0.5m² (excluding thin optical cables) Length: 600±25㎜, need to be pretreated according to the temperature and humidity environment required by the standard.
|
| Test items | Single wire and cable vertical burning test |
| Test station | Single |
| Electrical control method | PLC intelligent integrated control, 7-inch touch interface operation, dual operation with infrared remote control. |
| Function selection | Divided into manual operation and automatic operation test mode. |
| Blowtorch Standard | 1kw pre-mixing blowtorch, complies with IEC60695-11-2:2017 Annex A, burner opening Φ7±0.05mm, made of brass. |
| Ignition method | Auto ignition. |
| Gas flow and gas source type | Mixed gas: 650±10ml/min propane, 10±0.3L/min air, double flow meter adjustment. |
| Gas pressure | 0.1mpa, adjusted by the pressure regulating valve, displayed on the pressure gauge (range 0-1mpa). |
| Fire supply time | 0-9999X0.1S, can be set and displayed. |
| Filter paper ignition and extinction time | 0-9999X0.1S, can be displayed |
| Burning angle | Tilt 45°±2°, adjustable |
| Test flame calibration | Temperature measuring copper head: 500W: Ф9mm±0.01mm, 10±0.05g before drilling |
| Thermocouple: U.S. original Omega φ0.5 armored nickel-chromium/nickel-aluminum wire, type K, temperature resistance 1100° | |
| Distance between Bunsen burner port and temperature measuring copper block: 95±1 mm | |
| Flame height: blue flame core height 46-78mm, outer flame total height 148~208mm | |
| The heating time from 100±5°C to 700°±3°C is 46±6s | |
| Heating time: 0-9999X0.1S, measured and displayed on the touch screen | |
| Temperature measuring copper head mounting bracket: rotatable, rotate to the box wall when not measuring | |
| Sample installation | Fixed sample horizontal support: two upper and lower supports, the distance between the lower edge of the upper support and the upper edge of the lower support is 550±5mm |
| The sample is installed on the upper and lower brackets (the middle of the metal cover, that is, 150mm from both sides and 225mm from the back), and about 50mm from the bottom of the box | |
| A weight of 5N/mm² is configured for the sample that undergoes significant displacement during the test (by superimposing weights) | |
| Tray | Non-metallic Bakelite base 300x450mm, can be drawn out |
| Gauges, filter paper | Configure a set of flame height gauges (blue flame core height 46-78mm, total outer flame height 148~208mm), a temperature measuring distance gauge (95±1 mm), a distance gauge from the sample (100mm), 100 pieces of filter paper (300×300±10mm, quantitative 80±15g/m² ash content less than 0.1% undyed fiber filter paper) |
| Gas | 1. >95% propane gas; 2. Oil-free and water-free air |
| Sample result evaluation |
1. Measurement of carbonized part 2. Whether the filter paper is ignited 3. The time from when the filter paper is ignited to when the burning stops |
| Lighting | Configure 12W led spotlight |
| Safety protection |
1. Strong exhaust fan with baffle structure, the exhaust will be turned on automatically when the test is over or an alarm is given. 2. Equipped with a smoke detector to detect smoke leakage 3. With activated carbon bag to filter waste gas |
