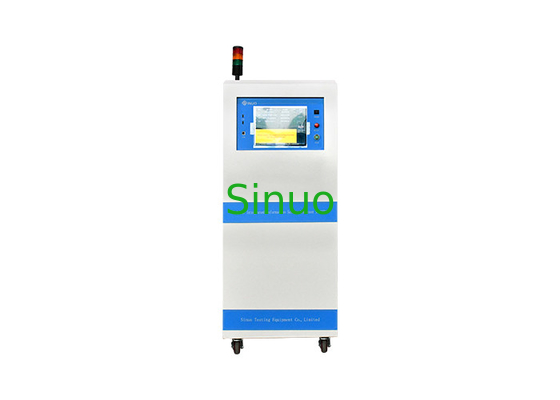

IEC 60884-1: 2022 7 In One Modular Integrated Information Safety Analyzer
Product Information For Modular Integrated Information Safety Analyzer:
This 7 in one electrical safety tester Conforms to IEC 60884-1:2022 clause 11, 17, IEC 60669-1:2017 clause 11 and Clause 16, IEC 60950:2013 clause 2.6.3.4, 5.2 and 6.2.2.3, IEC 60335-1 Clause 13, Clause 16, Clause 27 and etc. It integrates 7 functions of AC withstand voltage, DC withstand voltage, insulation, grounding, leakage, power, low-voltage start testing.
Features For Modular Integrated Information Safety Analyzer:
Global new modular information and safety regulation integrated analyzer, safety regulation function modular, realize information interconnection, with data acquisition, storage, analysis,
Transmission and other functions, is the best solution of the Internet factory detection.
■ 12-inch full-color touch screen, built-in touch keyboard, fast input;
■ Independently develop test system software to fully meet the requirements of intelligent testing;
■ Local storage of test data, which can be connected with MES and other information management systems;
■ Main item accuracy 1%, power test accuracy 0.2%;
■ Diversified communication modes: WIFI, network port, USB, RS232, RS485, CAN
■ Modular modular: each function module card design, multi-function selection, modular function customization, the establishment of sales service innovation system.
■ Parallel test parallel test: withstand voltage insulation and grounding can be tested at the same time, greatly shorten the overall test time, improve the test efficiency.
■ Fault self-diagnosis fault self-diagnosis: display the cause of equipment failure, with remote upgrade and modular design, to achieve a quick solution to equipment problems.
■ Remote Upgrade Remote upgrade: Remotely upgrade the latest version of the software to solve problems encountered in the use of the software and update the customization requirements.
■ Rapid discharge rapid discharge: rapid discharge patented technology, to achieve the measured object within 50ms discharge.
■ Anti-high voltage anti-high voltage GFI: : real-time monitoring loop, self-dynamic measurement of the measured object state, if there are personnel contact high voltage loop, automatically disconnect high voltage output, eliminate
Electric shock injury to ensure personnel safety
■WiFi function: it can connect to wireless network and mobile hotspot, realize network information transmission, remote diagnosis, remote upgrade and other networking functions.
■ Built-in power supply built-in power supply: frequency conversion power supply built-in, can real-time output voltage and frequency testing required, built-in power within 6KVA, more power
Can be customized.
■ Arc detection Arc detection: by detecting the abnormal current circuit of the tested object, screen out the exposed short-circuit defective products,
Bar code scanning: bar code start test, bar code test group and other functions, bar code and test data interconnection, easy data management and analysis.
■ Data management data management: real-time display of statistical data in the form of charts, conducive to data analysis and management, compatible with databases, and MES and other information systems docking.
| Model | Test Project | Function | Accuracy | ||||||||
| ACW | DCW | IR | GB | LC | PWR | STR | O/S | Variable frequency power supply | Transformer | 1% | |
| SN6872F | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||
| AC Withstand Voltage (ACW) | |
| Rated output | 5KV/100mA, short-circuit current>200mA |
| The output voltage range | 100 ~ 5000V |
| Output voltage accuracy | ±(1%× set value +2 words) |
| Voltage resolution | 1V |
| Output frequency | 50/60Hz |
| Frequency accuracy | ±0.1Hz |
| Output adjustment | ±(1%× set value +2 words) |
| Current upper limit | 0.00 to 100.00mA |
| The current lower limit | 0.000 to 9.999mA |
| Current measurement range | 0.00 ~ 100.0mA |
| The current measurement resolution | 0.001/0.01mA |
| Current measurement accuracy | ±(1%× reading value +5 words) |
| Slow rise time | 0-999.9s |
| Slow down time | 0.1-999.9s |
| Test time | 0,0.3-999.9s |
| Time resolution | 0.1s |
| Time accuracy | ±(0.2% x set value +1 word) |
| Arc detection | 0-9 |
| Current compensation range | 0.000-20.00mA |
| DC Withstand Voltage (DCW) | |
| Rated output | 6KV/10mA |
| The output voltage range | 200～6000V |
| Output voltage accuracy | ±(1%× set value +2 words) |
| The output ripple | ＜2% |
| Current upper limit | 0.00 to 10.00mA |
| The current lower limit | 0.000 to 9.999mA |
| Current measurement range | 0.00 ~ 10.0mA |
| The current measurement resolution | 0.001/0.01mA |
| Current measurement accuracy | ±(1%× reading value +5 words) |
| Slow rise time | 0-999.9s |
| Slow down time | 0.1-999.9s |
| Test time | 0,0.3-999.9s |
| Time resolution | 0.1s |
| Time accuracy | ±(0.2% x set value +1 word) |
| Arc detection | 0-9 |
| Current compensation range | 0.000-5.000mA |
| Discharge time | 100ms |
| Insulation Resistance (IR) | ||
| Rated output | 2500V/50GΩ | |
| The output voltage range | 200～2500V | |
| Voltage resolution | 1V | |
| Output voltage accuracy | ±(1%× set value +2 words) | |
| Ripple coefficient | ≤2% | |
| Resistance measuring range | 0.00 to 10.00mA | |
| Resolution of resistance measurement | 0.000 to 9.999mA | |
| Accuracy of measurement |
1.000MΩ~999.9MΩ Output 200-500V |
±(7%× reading value +3 words) |
|
1.000MΩ~999.9MΩ Output 501-2500V |
±(5%× reading value +3 words) | |
|
1.00GΩ~10.00GΩ Output 501-2500V |
±(7%× reading value +3 words) | |
|
10.00GΩ~50.00GΩ Output 1000-2500V |
±(15%× reading value +3 words) | |
| Slow rise time | 0-999.9s | |
| Slow down time | 0.1-999.9s | |
| Test time | 0,0.3-999.9s | |
| Time resolution | 0.1s | |
| Time accuracy | ±(0.2% x set value +1 word) | |
| Discharge time | ＜100ms | |
| Grounding Resistance (GR) | ||
| Rated output | 32A/600mΩ | |
| The output voltage range | 1.00～32.00A | |
| Voltage resolution | 0.01A | |
| Output voltage accuracy | ±(1%× set value +3words) | |
| Current fluctuations | ≤0.4% x Set value/min | |
| The output voltage | 3.00-8.00V AC | |
| The resolution of the | 0.1V | |
| The output frequency | 50Hz/60Hz | |
| Frequency accuracy | ±0.1Hz | |
| Upper/lower resistance setting | 0.1-600mΩ | |
| Resistance range | 0.1-600mΩ | 1.00～10.00A |
|
0.1 the Rm Ω R=(6400/ set current value)m ω |
10.10～64.00A | |
| Resolution of resistance measurement | 0.1/1mΩ | |
| Accuracy of resistance measurement | ±(1%× reading value +3 words) | |
| Voltage measuring range | 0.00-6.40V AC | |
| Voltage measurement resolution | 0.01V | |
| Accuracy of voltage measurement | ±(1%× reading value +3 words) | |
| Resistance compensation | 0-100mΩ | |
| The test of time | 0,0.3-999.9s | |
| Temporal resolution | 0.1s | |
| Time accuracy | ±(0.2%× reading value +3 words) | |
| Touch current/leakage current | ||
|
Test Probe Setup
|
Ground contact current: G-L, G-N, AUTO (G-L, G-N) | |
| Contact current to surface: PH-L, PH-PL | ||
| 7 kinds of human body simulation circuits (MD) are standard (optional customized human body network) | MD A. |
GB12113/IEC60990,GB4706.1/IEC60335-1 GB7000.1/IEC60598-1,GB4943.1/IEC60950-1 GB4793.1/IEC61010-1,GB8898.1/IEC60065 |
| MD B. | UL1563 | |
| MD C. | GB9706.1/IEC60601-1 | |
| MD D. |
UL544P
|
|
| MD E. | UL544NP/UL484/UL923/ UL1029/UL471/UL867/UL697 | |
| MD F. |
GB12113/IEC60990 GB7000.1/IEC60598-1 |
|
| MD G. |
GB4943.1/IEC60950-1 GB4793.1/IEC61010-1 |
|
|
Test power supply
|
Polarity Switching: On, Off, Auto | |
| Grounded and Un-grounded Conversion: On, Off | ||
| The transition between the normal connection state and the non-connection state of the neutral line of the test power supply: ON, OFF | ||
| Test voltage output | Single-phase, requires an external isolation transformer or variable frequency power supply; provides the voltage and frequency required for the test. | |
| Test voltage upper limit setting | 0.0V~300.0V AC | |
| Test voltage lower limit setting |
0.0V~300.0V AC
|
|
| Test voltage resolution |
0.1V ; 45Hz~65Hz |
|
| Test voltage measurement range | 0.0V~300.0V,45Hz~65Hz | |
| Test voltage resolution | 0.1V,45Hz~65Hz | |
| Test voltage measurement accuracy | 20.0V~300.0V: ±(2%×reading value+3 digits) | |
| load current | 20A | |
| Overcurrent Protection | RMS current and response time: 25A＜3s | |
| Peak current and response time: 70A＜10ms | ||
| Touch current measurement upper limit (effective value) | 0.0mA～20.000mA | |
| Touch current measurement lower limit (RMS) | 0.0mA～20.000mA | |
| Touch current measurement resolution (RMS) | 0.001mA | |
| Touch current measurement judgment error (RMS) | AC | ±(1%×reading value+3 digits) |
|
15Hz≤f≤ 100kHz |
±(1%×reading value+3 digits) | |
|
100kHz＜f≤ 1000kHz
|
±(2%×reading value+3 digits) | |
| Touch current compensation range | 0.000~1.000mA; automatic measurement; can be turned on or off | |
| testing time | 0; (1 ~999.9); 0 is infinite | |
| Test time resolution | 0.1s | |
| test accuracy | ±( 1% × set value + 1 word) | |
| test method | AUTO (G-L, G-N); time for 1 and a half times each | |
| Load Power | ||
| Power upper/lower limit settings | 0.0～6000W | |
| Power measurement range | 0.0-999.9W,1000-6000W | |
| Power measurement resolution | 0.1W,1W | |
| Power Measurement Accuracy | PF＞0.9 | ±(0.1%×reading value+0.1%×range) |
| PF≤0.9 | ±(0.4%×reading value+0.1%×range) | |
| Voltage measurement range | 0.0-300.0V | |
| Voltage measurement resolution | 0.1V | |
| Voltage measurement accuracy | ±(0.1%×reading value+0.1%×range) | |
| testing time | 0,0.3~999.9s | |
| Time resolution | 0.1s | |
| time accuracy | ±(0.2%×setting value+1 word) | |
| Low Voltage Start | |
| Current upper/lower limit setting | 0.00-20.00A |
| Current measurement range | 0.000-9.999A ,10.00-20.00A |
| Current measurement resolution | 0.001A/0.01A |
| Current measurement accuracy | ±(0.1%×reading value+0.1%×range) |
| Voltage measurement range | 0.0-300.0V |
| Voltage measurement resolution | 0.1V |
| Voltage measurement accuracy | ±(0.1%×reading value+0.1%×range) |
| testing time | 0,0.3~999.9s |
| Time resolution | 0.1s |
| time accuracy | ±(0.2%×setting value+1 word) |
| Configuration | |
| Communication Interface | WIFI, network port, USB, RS232 (optional RS485, CAN) |
| Dimensions (W×H×D), mm | 550*1360 (including casters without alarm light) *600 |
| Accessories (standard) | Test box, test clamp, foot switch, alarm light, instruction manual |
|
|
