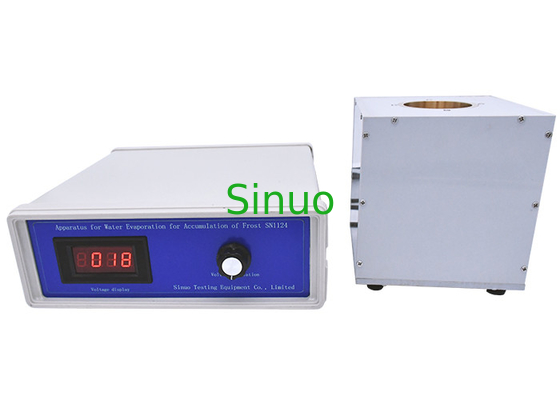

IEC 60335-2-24 Frost Accumulation Water Evaporation Test Apparatus
Product Overview For Frost Accumulation Water Evaporation Test Apparatus:
This test apparatus is designed and manufactured according to the standard requirement of IEC 60335-2-24 clause 11.102 and Annex BB (figure BB.1). It is used for water evaporation for accumulation of frost on these samples, such as refrigerators, ice-cream appliances and ice-makers. This container shell is made from PVC material, and the heat conduction part is made of cooper. It has the beautiful appearance and easy to operate.
Technical Parameters For Frost Accumulation Water Evaporation Test Apparatus:
Standard | IEC 60335-2-24 clause 11.102 and Annex BB. |
Input power supply | AC220V, 50HZ |
Frame material | PVC or Bakelite |
The material of heat conduction board | Copper plate |
Heating source | 5W incandescent lamp |
Output voltage of voltage supply device | 20~220V, adjustable |
Power consumption | Digital display |
Container external size | 145*145*145mm |
Consumption water weighing method | Digital display electronic balance (provided by the user) |
Water Interjection method | Manually |
Safety warning
In the process of using this apparatus, operator must pay attention to the following safety regulations. If this regulation is not followed, the product function may be damaged and personal safety may be endangered.
Notice:
Do not use this product in a corrosive environment
Do not use this product in places containing corrosive liquid or gas, otherwise it will cause damage to this product.
Do not operate in an explosive environment
Do not use this product where flammable and explosive materials are placed, otherwise it may endanger safety.
Ground protection
Before turning on the power, please ensure the product is well grounded, and avoid using the neutral wire as a protective ground wire.
Power supply
Before turning on the power, make sure that the voltage of the power supply matches the
Rated voltage.
The power supply should be AC220V±10%, 50/60Hz.
