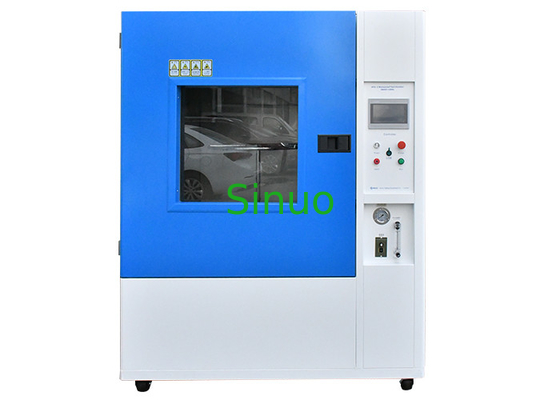

IEC 60529: 2013 IPX1 IPX2 Waterproof Test Chamber With Drip Board LCD Controller
Product Information For Waterproof Test Chamber:
The equipment is designed and manufactured according to requirements of IEC 60529: 2013 IPX1, IPX2. It is used for testing electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components’ physical and other related properties under simulated climatic conditions. After the test, it is judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.
Equipment features For Waterproof Test Chamber:
1. It is suitable for IPX1, IPX2 waterproof level test.
2. The shell is made of sprayed high-quality steel plates, beautiful and durable.
3. The drip board, inner chamber, turntable and other wading parts are all made of SUS304 stainless steel to ensure no rust for long time use.
4. The drip tank is with vacuum designed and high-rust stainless-steel construction; the nozzle base and needle can be separate, which is convenient for installing and replace the needle.
5. The water supply pipeline is equipped with a filter, which can filter impurities in the water, so as to prevent nozzle clogging.
6. With compressed air-drying function, after the test is completed, the excess water in the drip tank can be removed to avoid prolonged water fouling and block pinholes. (Note: users need to provide compressed air supply).
7. The turntable uses a reduced motor, the speed can be set on the touch screen, can reach to the speed of 1 rev/min required by the IPX1 test, and 15 °can be achieved by incline device on the turntable for IPX2 test.
Technical Parameters For Waterproof Test Chamber:
| Model | SN443-1000L |
| Inner Chamber | 1000mm*1000mm*1000mm |
| Outer Chamber | Approx. 1500mm*1260mm*2000mm |
| Outer Chamber Material | Spray treatment, concise, beautiful and smooth |
| Inner Chamber Material | High quality stainless steel plate |
| Weight | Approx.300KG |
| Turntable | |
| Rotating Speed | 1 ~5 rpm adjustable |
| Turntable Diameter | 600mm |
| Turntable Height | Adjustable height: 200mm |
| Turntable Bearing Capacity | Max. 20KG |
| Turntable Function |
IPX1 turntable parallel IPX2 can achieve 15° by adding the incline device on the turntable |
| IPX1/2 Dripping | |
| Dripping Hole Diameter | φ0.4 mm |
| Dripping Aperture Spacing | 20 mm |
| IPX1, IPX2 Dripping speed (water flow) |
1 +0.5 0mm/min(IPX1) 3 +0.5 0mm/min(IPX2) |
| Dripping Area | 800X800 mm |
| Distance between Drip Box and Sample | 200 mm |
| Electrical Control | |
| Controller | LCD touch controller |
| Test Time | 1-999,999min (can be set) |
| Turntable Control | Reduced motor, speed is stable |
| Oscillating Control | Stepping motor, oscillating tube swings stable |
| Flow and Pressure Control | Use manual valve to control flow and pressure, glass rotameters to indicate flow, stainless steel case spring pressure gauge to indicate pressure |
| Use Environment | |
| Ambient temperature | RT10～35℃ (average temperature within 24H≤28℃) |
| Environment humidity | ≤85%RH |
| Power supply | 220V 50HZ single-phase three-wire + protective ground wire, the grounding resistance of the protective ground wire is less than 4Ω; the user is required to configure an air or power switch with corresponding capacity for the equipment at the installation site, and this switch must be independent and dedicated for the use of this equipment |
| Power | Approx. 3KW |
| Protection System | Leakage, short circuit, water shortage, motor overheating protection, alarm prompt |
