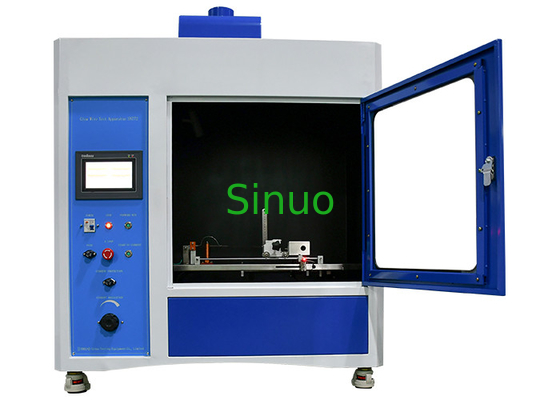

IEC 60335 Glow Wire Flammability And Temperature Test Apparatus With PLC Control
Product overview For Glow Wire Flammability And Temperature Test Apparatus:
This device is manufactured according to the standard of IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, UL746A, IEC 60335, IEC 60598, etc. It also conforms to the standard requirement of UL746A. This device simulates the thermal stress test of glowing component or heat source like overload resistance or ignition source which is caused in s short time. It is suitable for electric and electronic products, household appliances and other material to do fire hazard testing. It is also used in the No flame ignition source fire test to test initiation temperature and flammability index of related glowing filament.
Adopting advanced PLC control, and 7 inch color touch screen, it is with solenoid valve switch to control the burning depth of test sample and equipped with measuring gauge, this device has the features of exact and rapid. The test sample will break away automatically from glowing filament after reaching the set time. Adopting the original imported UK LAB K type armour (1mm) whose temperature resistance is up to 1100°(exceed 1050°of standard requirement) , this device is with accuracy temperature control.
Technical parameters For Glow Wire Flammability And Temperature Test Apparatus:
| Control | Advanced Mitsubishi PLC |
| Display | Wein view 7” color touch screen |
| Glowing Element |
Ф4mm ± 0.04mm Ni/Cr (77/20) special standard ring shape, horizontal standing |
| Thermocouple |
NiCrφ1mm,1mm import K thermocouple (Brand: RS), the temperature resistance of armor is 1100 ℃ (Better than the standard of 1050 ℃) |
| Temperature Precision |
500°C-750°C+10%, 750°C-960°C+10% Temperature fluctuation < 3 ℃ |
|
Specimen pressure on glowing filament |
0.95N±0.1N (adjustable) |
|
Maximum depth of heating |
7mm ± 0.5mm |
|
Specimen movement speed |
10mm /s ～ 25mm /s |
| Testing time | 30s±0.1s(1s ～ 999.9s digital display preset ) |
|
Thickness of ignite bedding board |
Thickness10mm, white pine board cover 12g /m 2 ～ 30g /m 2 standard silk paper |
| Volume of test site | ≥ 0.5m³, black background, background illuminance ≤ 20Lx |
| Dimension and weight |
W: 1100mm × D: 550mm × H: 1200mm, gas vent:100mm, 140KGS |
| Power | Single phase AC 220V±10% / 50Hz |
| Standard | IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, UL746A, IEC 60335, IEC 60598, etc. |
