| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood Case |
| Delivery Period: | 25 Days |
| Payment Method: | T/T |
| Supply Capacity: | 30 Sets Per Month |

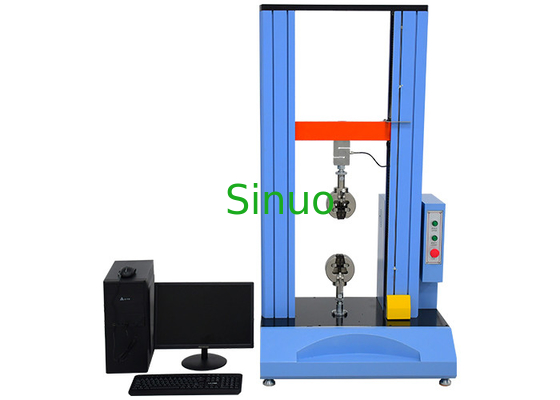

IEC60947-1 Tensile Strength Test Machine With Test Range 50KN Adopts Computer Control
Product information:
This machine adopts computer control, widely used in the mechanical properties of various materials test, with special fixture is also suitable for all kinds of finished products tensile, compression, stripping, shear, tear, bending (folding) test. It can print a number of data, according to different data to make graphic output comparison, high control precision, easy to operate; Modular design, a variety of accessories variety, flexible collocation.
Control software introduction:
1.Software operating system language: English.
2. Force value unit: N, KN, Kgf, Lbf
3. Length unit: mm, cm, inch can be freely converted
4. Control mode: computer software to set speed, set load break (rupture), running time and other control modes
5. Type of curve: load-displacement, load-time, displacement-time. Stress-strain, strain-time, stress-time. The vertical and horizontal coordinates of the curve can be set arbitrarily.
Working conditions of the testing machine:
1. In the range of room temperature 10℃-35℃, the relative humidity is not more than 80%;
2. Install correctly on a solid foundation or workbench;
3. In a vibration-free environment, leave no less than 1m space around;
4. No corrosive media around;
5. The fluctuation range of the power supply voltage should not exceed 10% of the rated voltage.
Technical parameters:
1. Test strength range: 0-5000kg (0~50kN)
2. Force measurement accuracy: 0.001Kg
3. Switch units: Kg, N, Lb
4. Load analysis: 1/250000
5. Load accuracy: ±0.2%
6. Displacement switch: mm, cm, in
7. Displacement measurement display accuracy: 0.01mm
8. Test effective width: 400mm
9. Test stroke: 800mm
10. Speed test range: 0.01-500mm /min stepless speed regulation
11. Transmission system: servo motor, Taiwan ZPT ball screw, computer software TM2101
12. Safety device: overload emergency stop device, up and down travel limit device, automatic breakpoint stop function
13. Fixture: a set of standard universal fixture made according to customer products
14. Accessory configuration: a desktop computer
15. Operation mode: Computer control, the use of windows working platform, hierarchical mode of operation coupled with detailed help documents and tips make it the most easy-to-use software in the testing machine industry
16. Using multi-thread parallel processing technology, real-time display of force-displacement, force-time, displacement-time, stress-strain and other curves during the test process, you can switch to the curve screen you want to see at will, and you can view user Settings. The industry's innovative Microsoft Word report format is easy to use, as long as you know how to use Word, you can edit the beautiful report you want
17. Working power supply: 220V/50HZ
18. Power: 1.0KW
19. Machine weight: about 300KG
