Information Technology Equipment Tester 130A Current Test Generator IEC 60950
Product Information For 130A Test Generator:
The 130A test generator is designed and manufactured according to the requirements of IEC60950 clause 2.3.5.
It can simulate voltage standards (50Hz or 60Hz) in different regions to meet the test requirements. The instrument is designed with a stable signal source and a large and medium power matching circuit to meet the output requirements under large loads.
Technical Parameters For 130A Test Generator:
Input Characteristics:
| Input voltage | AC 120V±10% |
| Input frequency | 50Hz/60Hz |
| Working environmental | Temperature:-20℃～40℃, Humidity: < 80％ RH |
| Power fuse | 4A |
| Dimensions | Approx. 408mm (L) * 320mm (D) * 180mm (H) |
Technical Index:
| Output voltage | 120V±2V |
| Output frequency | 50Hz/60Hz±2words |
| Internal impedance | 1200Ω±2% |
| Function | With commutation connection requirements |
| Output power | 25W |

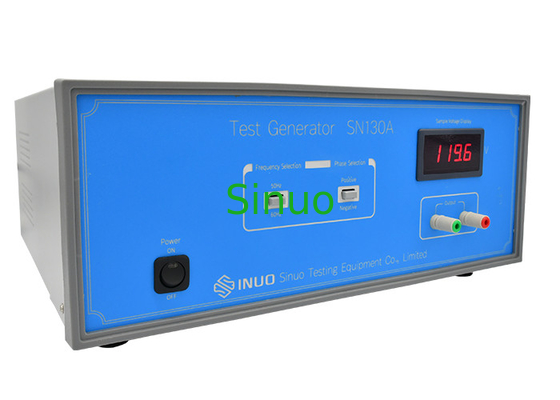

Instructions of Panel :
①: Power switch (POWER)
②: Output frequency selection
③: Commutation selection
④: Output voltage display
⑤: Output voltage terminals
Operating Instructions For 130A Test Generator:
1 Precautions
Notice for use: The safety issue has been fully considered in the design of the 130A voltage generator. However, if the instrument is used improperly, it may still cause serious safety accidents. Therefore, the following points must be noted before use:
1.1 After confirming that the input power voltage is correct, connect the single-phase 220V AC 50/60Hz power supply. The ground wire must be correctly connected to ensure personal safety.
1.2 After the instrument is started, it is forbidden to directly touch the output terminals with hands to prevent electric shock.
1.3 Pay attention to whether there is abnormal noise in the machine. No abnormal noise can be used for the next operation; if there is abnormal noise, please shut down to check the cause of the noise or contact us for assistance.
1.4 The exhaust net can be seen on the back case of the instrument. Please do not insert foreign objects into the exhaust net or block the exhaust net. Regularly check whether the fan is operating normally, remove dust from the exhaust net and keep the air flowing smoothly.
1.5 Since the instrument uses a fan for heat dissipation, the fan exhaust net may have high temperature. Please do not touch the fan exhaust port at will when the instrument is running.
2 Operation steps
2.1 Connect the instrument to rated power supply of 220V,50Hz 60Hz, and then turn on the power switch.
2.2 Select the required frequency and output phase according to the test requirements (the default output is 120VAC/50Hz/normal phase).
