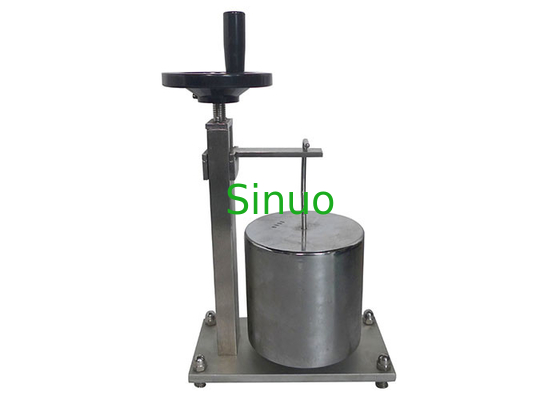

IEC 60884-1:2022 Device For Checking Non-Solid Pins For VDE Type Plugs Sockets
Product information For Device For Checking Non-Solid Pins:
The appliance is checked by the test of IEC60884-1:2013 clause 24, figure 14, for pins which are not solid, by the following test which is made after the test of clause 21. A force of 100 N is exerted on the pin, which is supported as shown in IEC60884-1, IEC60884-1, figure 14, for 1 min in a direction perpendicular to the axis of the pin, by means of a steel rod having a diameter of 4,8 mm, the axis of which is also perpendicular to the axis of the pin. During the application of the force, the reduction of the dimension of the pin at the point where the force is applied shall not exceed 0,15 mm. After removal of the rod, the dimensions of the pin shall not have changed by more than 0,06 mm in any direction.
Technical parameters For Device For Checking Non-Solid Pins:
| No.: | Specifications |
| Load weight | 100N |
| Steel rod | Φ4.8mm |
| Time for force application | 1 minute |
| Equipment material | Stainless steel |
Operation Steps For Device For Checking Non-Solid Pins:
1. Before using it for the first time, the operator needs to be familiar with the relevant standards in order to use the test device more effectively and correctly and complete the test.
2. Put the plug and pin on the bracket according to the standard requirements, and then use the handle to lifting the weight. At this time, apply a pressure of 100N to the plug. After 1 minute, lower the lifting device and release the weight pressure. The direction of force is against the central axis of the pin, and the force is applied to the central axis of the pin through a steel rod of Φ4.8mm.
3. During the force application, the size of the position where the pin is stressed may be reduced, but the reduction value cannot exceed 0.15mm.
4. After the steel rod is removed, the dimensions of the pins should not change by more than 0.06mm.
