| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 10 Sets Per Month |

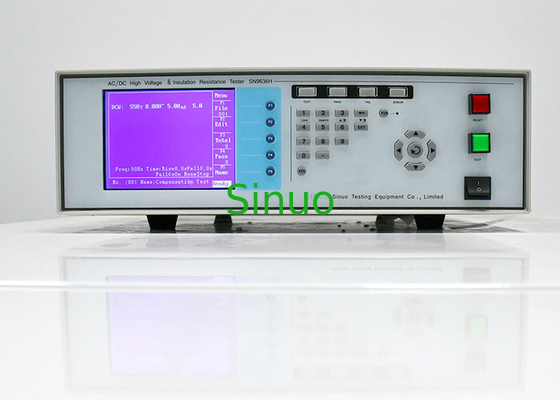

High Voltage Insulation Flash Tester
Product overview:
■Meet the test requirements of general electrical safety standards such as IEC 60884-1:2013 clause 17, etc
■ Up to 100 groups of test condition memory, model of each group can be set, easy to find, test data can be saved via USB(optional)
■ Voltage ramp-up and ramp-down functions to meet the requirements of new industry standards;
■ Breakdown current upper and lower limit preset, intelligent judgment;
■ Digital closed-loop feedback control mode, automatic voltage regulation mode, automatic correction of output voltage/current, and not affected by the external power grid, ensuring the accuracy of the test
■ High-definition LCD display and simple panel operation
Technical parameter:
| Model | BF9636H |
| Test Contents | AC and DC withstand voltage, insulation resistance |
| Data storage method | USB (optional) |
| External interface | Alarm LAMP, PLC, RS-232 |
| AC withstand voltage | |
| Output voltage setting range / accuracy |
AC 200～5000V ±(1.5%×setting+5digits) |
| Breakdown current measurement range / accuracy |
0.10～100.0mA ±(1.5%×setting+5digits) |
| Breakdown current preset alarm range |
Upper limit :0.1～100.0mA； Lower limit :0.00～5.00mA |
| Short-circuited current capacity | ≥200mA (the device will enter into protection status when short-circuited current exceeds 200mA) |
| Test time range / resolution | 1～300s 1s/step |
| DC withstand voltage | |
| Output voltage setting range / accuracy | DC 200～5000V ±(1.5%× setting +5 digits ) |
| Breakdown current measurement range / accuracy | 0.10～10.00mA ±(1.5%×display+5 digits) |
| Breakdown current preset alarm range | Upper limit: 0.10～10.00mA; lower limit: 0.00～5.00mA |
| Test time range / resolution | 1～300s 1s/step |
| Insulation resistance | |
| Output voltage setting range / accuracy | DC500/1000V ±(1.5%× reading +5 digits ) |
| Insulation resistance measurement range / accuracy |
1~2000MΩ: ≤100MΩ:± (5%×display+3 digits ) >100 MΩ:± (8%× display +8 digits) |
| Insulation resistance alarm setting range |
Upper limit: 0 ～ 2000MΩ; lower limit: 1 ～ 2000MΩ |
| Test time range / resolution |
1～300s 1s/step |
| Equipment dimensions | 435MM(W)*150MM(H)*550MM(D) |
| Equipment weight | Approx. 30KGS |
| Equipment accessories | Power cord*1, high voltage probe*1, test wire*1, fuse*1 |
|
|
