UL 1642 FIG. 20.1 Lithium Battery Fire Exposure Test Apparatus Single Station

UL 1642 FIG. 20.1 Lithium Battery Fire Exposure Test Apparatus Single Station

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 1 Month
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN557B
Applied Standard:
UL2054, UL 1642, GB 31241 And Etc.
Flame Applicate Time:
99H59M59.9S±0.1s
Flame Height:
10~75±2mm Can Be Adjustable
Testing Hole Diameter:
102mm
Fire Ignition Device:
Auto Fire Ignition
Testing Bar Diameter:
1/4 Inch (6.4mm) ×12 Inch (305mm)
Number Of Station:
1 Station
Burner:
Bunsen Burner
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
1 Month
Payment Terms:
T/T
Supply Ability:
20 Sets Per Month
High Light:

Lithium Battery Fire Exposure Test Apparatus

,

Single Station Fire Exposure Test Apparatus

Product Description

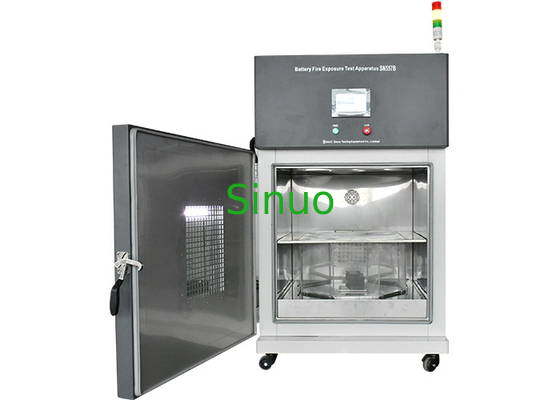

UL 1642 FIG. 20.1 Lithium Battery Fire Exposure Test Apparatus Single Station



Overview:

This apparatus conforms to UL2054 Clause 22 FIG. 22.1, UL 1642-2009 Clause 20 FIG. 20.1, GB 31241-2014 Article 7.9 FIG. E.2.

Battery Fire Exposure Test Apparatus is an essential test equipment for battery manufacturers and quality inspection departments. This equipment has the characteristics of convenient operation, safety and reliability, and high precision. It is an ideal testing machine for battery combustion and projectile testing.



Technical Parameters:

1 Sample limits

This test equipment prohibits:

Testing or storage of biological specimens

Test or storage of strong electromagnetic emission source specimens

Testing or storage of radioactive material samples

Testing or storage of samples of highly toxic substances

Test or storage of specimens during testing or storage that may produce such substances or objects

2 Number of stations 1 station
3 Burner Bunsen burner, pipe inner diameter 0.375 inch (9.5mm)
4 Flame Applicate Time 99H59M59.9S±0.1s
5 Flame Height 10~75±2mm can be adjustable
6 Testing Hole Diameter 102mm
7 Fire Ignition Device Auto fire ignition
8 Schematic diagram of blowtorch and electric fire device UL 1642 FIG. 20.1 Lithium Battery Fire Exposure Test Apparatus Single Station 0
10 Testing Bar Diameter 1/4 inch (6.4mm) ×12 inch (305mm)
11 Test Cover Width 24 inches (610mm) ×12 inch (305mm), octagonal
12 Test Cover Height 12inch (305mm)
13 Testing Aluminum Mesh Diameter 0.010-inch (0.25mm) 16hole×16hole
14 Octagonal stainless steel net cover Distance between each other 2 feet (610mm), Octagonal net cover height1 feet (305mm)
15 Screen 150×150mm (made of steel wire mesh with 20 holes per foot or steel wire 0.017 inch /0.43mm), Max capacity:5kg
16

Standard drawing of

Eight-sided cover

UL 1642 FIG. 20.1 Lithium Battery Fire Exposure Test Apparatus Single Station 1
17

Physical picture for

Eight-sided cover

UL 1642 FIG. 20.1 Lithium Battery Fire Exposure Test Apparatus Single Station 2
18 Burning Gas Requirement High purity liquefied petroleum gas (should be prepared by Customer)
19 Control system PLC, and a remote controller is offered, whole test procedure fully automatic
20 Display and Operation Method Touch Screen
21 Video Monitor Brand MI
Model MJSXJ09CM
Size 115*78*78mm
Resolution 1296P(3 megapixel)
Viewing angle Horizontal 360° Vertical 108°
PTZ control APP control (Horizontal + Vertical)
Full color night market Low light full color
Infrared night vision Support
Two-way voice Support
Tracking function Support
Install method lay flat /upside down /side mounted
Wifi channel 2.4GHz
Storage Come with 32G microSD card
22 Inter Size W800XD700XH700 mm
23 Overall Dimension W1000XD900XH1620 mm
24 Observation Window 430 X 350mm(20mm thickness tempered explosion proof glass), with explosion-proof net
25 Inner chamber Material SUS304 Stainless steel
25 Outer Chamber Material Cold rolled powder painted
26 Smoke Extractor Φ 150mm on back side
27 Bottom Installed with universal wheels
28 Pressure Relief Port Test chamber with pressure relief device, when the pressure in the chamber to set up, self-open the pressure relief hole to release the pressure out of the chamber


Features

PLC and touch screen for control and operation.

When there is a smoke alarm, the exhaust will automatically open, and when there is no smoke, it will be closed after a delay.

Unsuccessful ignition alarm and cut off steam source.

Built-in lighting, through external reflection, to ensure the life and safety of lighting, etc.

The HD video camera and visual window can enable operator to clearly observe the changes of the test object in the experiment.

With explosion-proof glass, and equipped with steel mesh, double protection.

Controlled by remote controller, the maximum distance can reach 10 meters.

UL 1642 FIG. 20.1 Lithium Battery Fire Exposure Test Apparatus Single Station 3



Test procedures

Place the test cell on a flat plate covered with a cover with a 4-inch diameter hole in the center. Covers are made of wire mesh or 0.017 in (0.43 mm) wire with 20 holes per foot. Place a screen with 8 sides 2 feet (610 mm) wide and 1 foot high (305 mm) on each side around the sample. The wire mesh consists of 0.010" (0.25mm) wire with 16-18 wires per inch. The sample is placed on a wire mesh, covering the hole in the center of the table, and heated until it explodes or is destroyed. The direction of the safety valve is parallel to the asbestos cloth.

Acceptance: The exploding battery does not partially penetrate the screen, and the battery does not partially or fully protrude from the screen.

UL 1642 FIG. 20.1 Lithium Battery Fire Exposure Test Apparatus Single Station 4UL 1642 FIG. 20.1 Lithium Battery Fire Exposure Test Apparatus Single Station 5
