IEC60881 Household Plug And Socket - Outlets General Required VDE Gauges

IEC60881 Household Plug And Socket - Outlets General Required VDE Gauges

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 15 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2101-4
Applied Standards:
IEC60884-1:2013 & DIN VDE 0620-1:2010 Gauge List.
DIN-VDE0620-1-Lehre1:
Socket Jack R Size Gauge (5.0, 5.8, 6.0)
DIN-VDE0620-1-Lehre2:
Minimum Opening Width And Minimum Withdrawal Force Of Contact Socket
DIN-VDE0620-1-Lehre3:
Insertion Force Of Bipolar Plug
DIN-VDE0620-1-Lehre4:
Insertion Force Of Double Board Plug With Side Grounding Contact
DIN-VDE0620-1-Lehre5:
A Gauge Used To Test The Interval Of The First Contact Closure
DIN-VDE0620-1-Lehre6:
Diameter Of The Pin
DIN-VDE0620-1-Lehre7:
Pin Distance
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
15 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
20 sets per month
High Light:

IEC60881 Household Plug And Socket

,

VDE Gauges Household Plug And Socket

Product Description



IEC60881 Household Plug And Socket-Outlets General Required VDE Gauges



Standards & Clauses:

The measuring gauges are required by IEC60884-1:2013 & DIN VDE 0620-1:2010 Gauge List.



Technical Parameters:

No.: Figure No. Name QTY
1 DIN-VDE0620-1-Lehre1 Socket jack R size gauge (5.0, 5.8, 6.0) 3 PCS
2 DIN-VDE0620-1-Lehre2 Minimum opening width and minimum withdrawal force of contact socket 2 PCS
3 DIN-VDE0620-1-Lehre3 Insertion force of bipolar plug 1 PC
4 DIN-VDE0620-1-Lehre4 Insertion force of double board plug with side grounding contact 1 PC
5 DIN-VDE0620-1-Lehre5 A gauge used to test the interval of the first contact closure 1 SET/4 PCS
6 DIN-VDE0620-1-Lehre6 Diameter of the pin 1 SET/4 PCS
7 DIN-VDE0620-1-Lehre7 Pin distance 1 SET/2 PCS
8 DIN-VDE0620-1-Lehre8 Maximum opening width of contact socket 1 PC
9 DIN-VDE0620-1-Lehre9 Test plug interchangeability gauge 1 PC
10 DIN-VDE0620-1-Lehre10 Impossible A of Single pole contact hole contact 1 PC
11 DIN-VDE0620-1-Lehre10 Impossible B of Single pole contact hole contact 1 PC
12 DIN-VDE0620-1-Lehre11 Non-pluggability of bipolar plugs without grounding contacts 1 PC
13 DIN-VDE0620-1-Lehre12 Impossibility of single-pole plug insertion (including 250g and 1000g weights) 1 SET
14 DIN-VDE0620-1-Lehre13

Probe to check the inaccessibility of live parts in the protection door after the

normal operation test

1 SET
15 DIN-VDE0620-1-Lehre14 Test for grounding on both sides 1 PC
16 DIN-VDE0620-1-Lehre15

Probes used to check the inaccessibility of live parts in the protection door

and the live parts of the enhanced protection socket

1 SET
17 DIN-VDE0620-1-Lehre16a Maximum withdrawal force of plug (16a) 1 PC
18 DIN-VDE0620-1-Lehre16d Minimum withdrawal force of plug(16d) 1 PC
19 DIN-VDE0620-1-Leher16e Gauge (including 18N weight) 1 PC
20 DIN-VDE0620-1-Lehre17 Lehre17 gauge 1 PC
21 DIN-VDE0620-1-Lehre18 Lehre18 gauge 1 PC
22 DIN-VDE0620-1-Leher19a Force measuring gauge for 16A socket protection door 1 PC
23 DIN-VDE0620-1-Leher19b Force measurement gauge for 2.5A socket protection door 1 PC
24 DIN-VDE0620-1-Bild14 Bild14 gauge 1 SET
25 DIN-VDE0620-1-Bild43 Bild43 gauge 1 SET /2 PCS
26 DIN-VDE0620-1, EN50075-Fig2 Gauge for testing plug interchangeability 1 PC
27 DIN-VDE0620-
1-Bild16a
16A temperature rise plug gauge 1 PC
28 DIN-VDE0620-
1-Bild16d
2.5A temperature rise plug gauge 1 PC


 Notice

1. Please do not damage the appliance shape (such as scratching, bending, etc.).

2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.

3. Add anti-rust oil regularly.

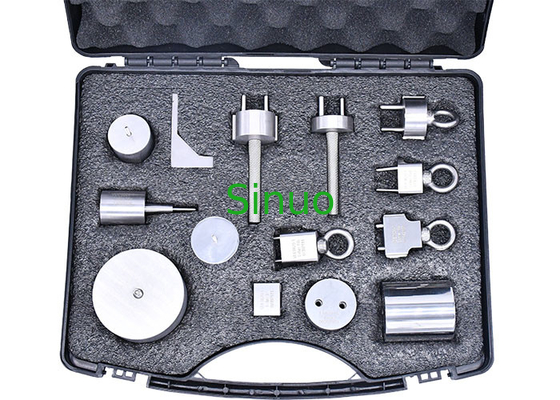

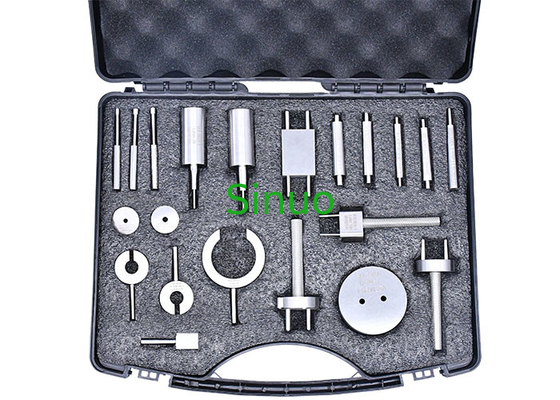

Gauges example
