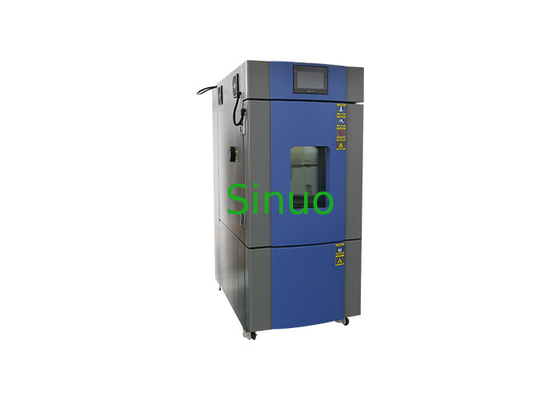

IEC 60068 Environmental Testing Chamber With Constant Temperature And Humidity 80L

IEC 60068 Environmental Testing Chamber With Constant Temperature And Humidity 80L

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 1 Month
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 5 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN881-80L
Applied Standard:
IEC 60068 Series
Working Volume:
80L
Inner Size:
400×400×500mm
Temperature Range:
-40 ℃~+150℃
Humidity Range:
20%-98% RH
Temperature Uniformity:
±2℃
Heating Rate:
≧2-3°C/min
Cooling Rate:
≧0.7-1°C/min
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
1 Month
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
5 Sets Per Month
High Light:

IEC 60068 Environmental Testing Chamber

,

80L Environmental Testing Chamber

,

Constant Humidity Environmental Testing Chamber

Product Description



IEC 60068 Environmental Testing Chamber with Constant temperature and humidity 80L



Product overview:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”



Technical parameters:



Control & Operation PLC and touch screen intelligent control system
Chamber Size (Optional) Inner Size External Size
80L, WDH=400×400×500mm WDH=1000×870×1700mm
Temperature Range (Optional)

A: -20~150℃;

B: -40~150℃;

C: -70~150℃

Humidity Range 20%~98%RH
Temperature Resolution 0.1℃
Temperature Fluctuation ±0.5℃
Temperature Uniformity ±2℃
Humidity Deviation ±3%RH
Heating Rate ≧2-3°C/min
Cooling Rate ≧0.7-1°C/min



Structure:

This machine adopts a closed chamber structure with the following features:

A. It has an extremely wide temperature and humidity control range to meet the various needs of users.



B. It adopts a unique balanced temperature adjustment and humidity control mode to adjust the ideal temperature and humidity environment. The heating and humidification capability are stable and balanced, and the temperature and humidity control are high-precision and high-stability.



C. Automatic selection of refrigeration circuit: The automatic control device has the ability of automatically starting the running refrigeration circuit according to the set value of temperature, can start the cooling directly under the high temperature state. The refrigeration adopts the air-cooled condensing unit with fully enclosed compressor (imported).

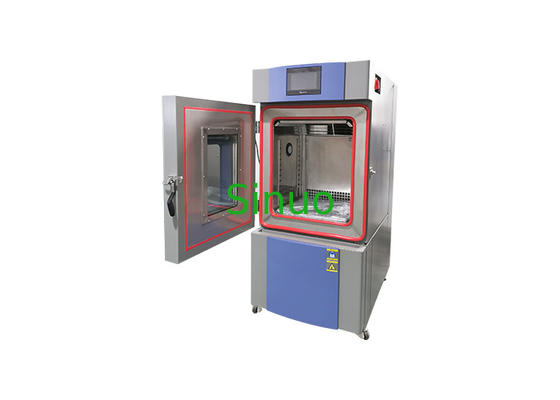

D. The door is equipped with a observation window, which is convenient for observing the test state of the test sample.
