| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard Exporting Plywood Case |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 20 Sets Per Month |
IEC 62196 Over-Pressure Test System For Electric Vehicle Accessories
Product Information:
This overpressure test system meets the test requirements of IEC 62196-3-1 Cl 101.6. It is used to carry out pressure leakage test on the sealing requirements of the liquid coolants under 10L volume.
The system's booster pump outputs high pressure to verify the pressure resistance of the samples according to the different pressures of the samples. The system is composed of electrical control system, pressure control system and water tank, the workpiece is manually installed and connected.
Technical Parameters:
| Power supply | AC 220V, 60Hz, 0.3KW |
| Test station | Single station |
| Electrical control method | Computer intelligent control and operation |
| Test pressure | 1.0-10.0Bar, booster pump drive |
| Pressure control accuracy | +1% of the upper limit of the test pressure value, -1% of the lower limit |
| Display accuracy | 0.1 Bar |
| Test medium | Dry air |
| Pressure control method | Computer control |
| Boost rate | Adjustable, non-uniform linear |
| Pressure hold time | 0-9999s arbitrarily set, with seconds as the time unit, computer display |
| Test process | Boost-hold-relief |
| Drive air pressure | 0.2-0.8MPa |
| Volume size | Less than 10L |
| Water tank dimensions |
WDH=500×500×1000mm With transparent viewing window for observe bubbles |
| Standard output Interface |
ZG1/4 internal thread User should consider the connection between our ZG1/4 internal thread to tests samples |

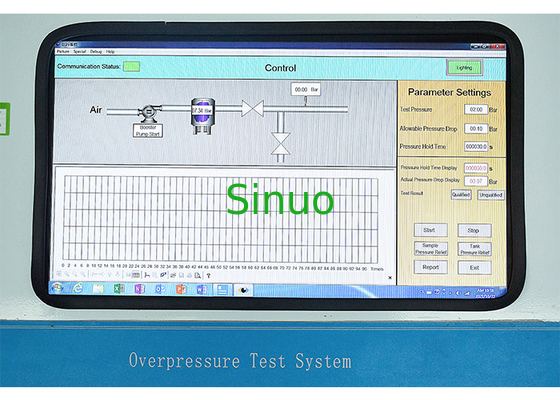

| Pressure curve display | Real-time display, data collected by software |
| Test data storage | Can save reports in excel form |
| Computer | Intel i5 4 G memory (or above) 512G SSD,Windows7 operating system and OFFICE processing software, with RS232 communication interface |
| Safety protection | |
| Power | Leakage protection, overload and short circuit protection |
| Motor | Overload, short circuit protection |
|
|
