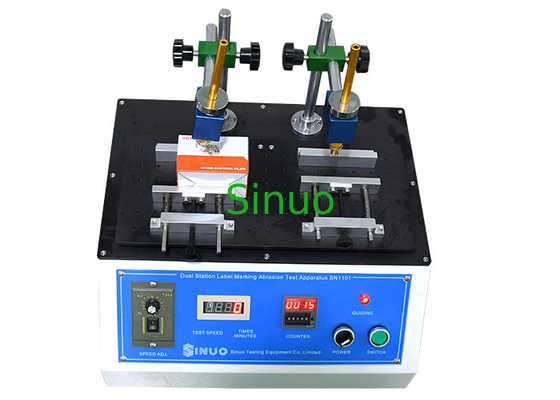

IEC 60065 Clause 5.1 Label Marking Abrasion Test Equipment
Product information:
This label marking abrasion test equipment is designed and manufactured according to the standard requirements of IEC 60065:2014 clause 5.1, IEC 60335-1 clause 7.14, IEC 60950:2013 clause 1.7.11, IEC 60669-1 clause 8.9.
The Alcohol Rubber Rubbing Tester is suitable for all kinds of plastic injection, silk screen surface for abrasion test, such as: computer, mobile phone (PDA), MP3, CD/VCD/DVD, cordless telephone, electronic dictionary and other surface and printing surface
Technical parameters:
Applied standard | IEC 60065 |
Applied clause | 5.1 |
Specification | Two axes (the axes can be used as both rubber and alcohol friction, and pencil hardness test can also be added) |
Stroke | 10-60mm, adjustable(Manually) |
Test speed | 5-60/min, adjustable |
Time counter | 0-99999999s, adjustable |
Test weight | Equipped with 2 PCS for each 50, 100, 300, 500g, the weight can be customized according to the buyer’s requirements |
Voltage | 220V, 50Hz |
Equipment size | 500*300*550mm |
Accessories | Alcohol rubbing fixture 2 pcs, rubber rubbing fixture 2 pcs, pencil friction fixture 2 pcs, cotton cloth, eraser 2 pcs |
|
