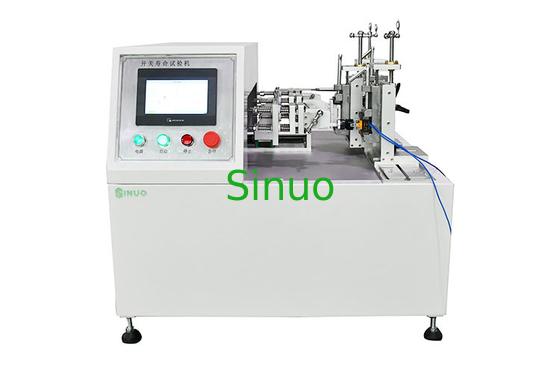

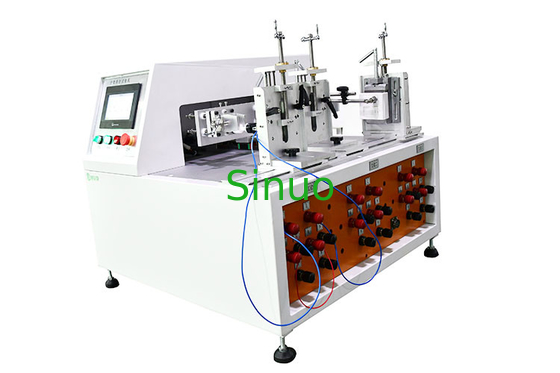

IEC 60335-1 Annex H Plugs Socket-outlets Switches Endurance Test Equipment
Product Information:
The Plugs Socket-outlets Switches Endurance Test Equipment conforms to the standard requirements of IEC 60335-1 Annex H, IEC60065:2014 clause14.7 and clause 15.1, IEC 60884-1 2013 clause 20, 21, IEC 61058-1, IEC60669-1 etc.
The test equipment has 3 synchronously work stations, which can test 3 linear switches, or 3 plugs or 3 sockets at the same time. The equipment will automatically stop and alarm if one of the stations in abnormal running.
Working together with load cabinet (the load cabinet is not included in this equipment, it is optional), can achieve making and breaking ability test and the normal operation endurance test of the plugs, sockets and linear switches for household and similar fixed-electrical installations. The testing purpose is to see whether the switches or the plugs and sockets can endurance the mechanical damage or electric fatigue failure during the normal operation. Whether the contact adhesion occurs or there is a phenomenon of being the on (off) station for a long time, which is the criterion of judging the sample is over damage or not.
The device is made of aluminum alloy rack, stainless steel seal plate, driven by a servo motor and ball screw, 7-inch color touch-screen display and set the test parameters, PLC control. Preset number of trials, testing rate, and stroke.
Technical Parameters:
| Applied standard | IEC 60335-1 |
| Applied clause | Annex H |
| Power | AC 220V±10V, 50Hz |
| Station | 3 synchronous stations (3 linear stations for testing plugs, sockets, linear switches) |
| Operation interface | 7-inch color LCD touch screen |
| Drive mode | Servo motor + ball screw |
| Control system | PLC control system (Mitsubishi) |
| Test times | 0～999999 times, can be preset |
| Conduction time | 0～99.9s, can be preset |
| Close time | 0～99.9s,can be preset |
| Test stroke | Linear: 0～100mm, can be preset |
| Test speed | Linear: 0～100mm/s,can be preset |
| Atmospheric pressure | 80～106kpa |
| Ambient temperature | 5～40°C |
| Relative humidity | (20～90)%RH |
| Use environment | Requires no violent shaking, no vibration, no electromagnetic interference, no dust, no explosive, no corrosive gases, needs good heat dissipation place |
| Dimensions and weight | L*W*H=960*730*600mm,160kg |
|
|
